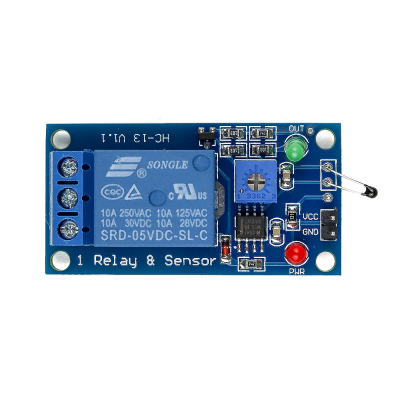

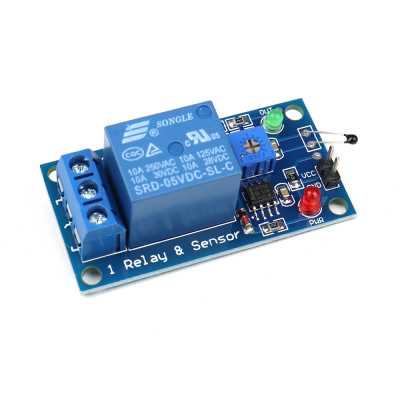

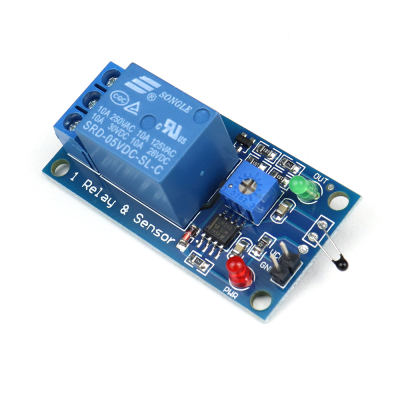

Thermal Sensor Relay Module
A temperature detection module with relay output for controlling AC high-power products.
- Operating Voltage (VDC): 3.3 ~ 5
- Maximum Voltage (V): 5V DC
- Maximum Operating Current (A): 0.15
- Trigger Voltage (VDC): 5
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Operating Temperature (C): -40 to 100
- Opt. Relative Humidity (RH): 20% - 85%
- Storage Condition: -40 to 125
- Length (mm): 50
- Width (mm): 26
- Height (mm): 17
- Weight (gm): 16
Key Features:
- Temperature detection via potentiometer adjustment
- Relay output for controlling corresponding temperature
- Directly connected to AC high-power products
Package Includes: 1 x Thermal Sensor Relay Module.
*Images are for illustration only; actual product may vary.
