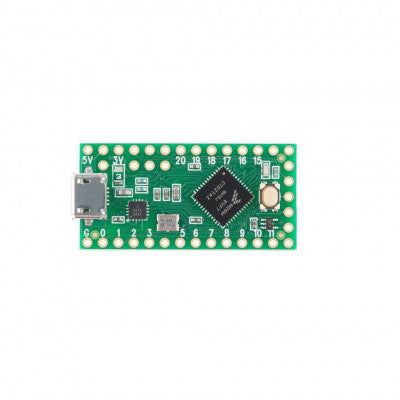

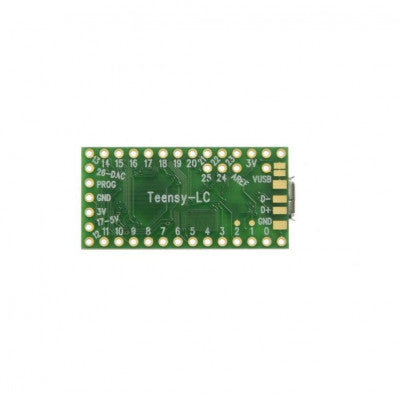

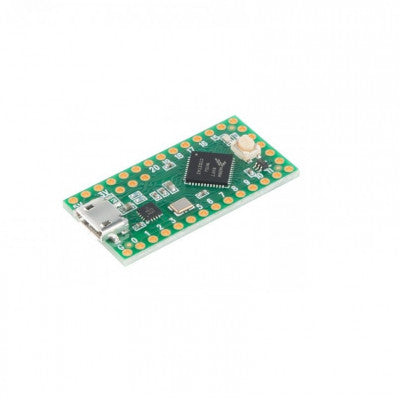

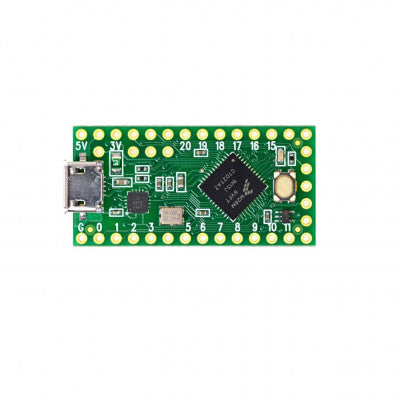

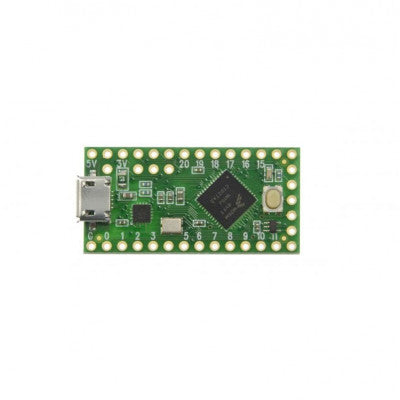

Teensy LC USB Micro-controller Development Board
A breadboard-friendly development board with a plethora of features in a compact package.
- Processor: MKL26Z64VFT4
- Core: Cortex-M0+
- Rated Speed: 48 MHz
- Flash Memory: 62 kbytes
- RAM: 8 kbytes
- Direct Memory Access: 4 Channel
- EEPROM: 1/8 (emu) kbytes
- Digital I/O: 27 Pins
- Voltage Output: 3.3V + one 5V
- Current Output: 5mA + four 20mA
- Voltage Input: 3.3V Only
- Analog Input: 13 Pins
- Analog Output: 1 pin
- Timers: 7
- PWM Output: 10 pins
- USB: 1
- Serial: 3
Top Features:
- 32 bit ARM Cortex-M0+ 48 MHz CPU
- 62kB Flash Memory, 8kB RAM, 1/8(emu)kB EEPROM
- 13 High-Resolution Analog Inputs
- 27 Digital I/O Pins (NOT 5V Tolerant)
The Teensy LC (Low Cost) is a 32-bit microcontroller board that offers a straightforward option for starting with the Teensy line without a hefty price tag.
Real Hardware Serial: Most modern projects involve serial communication with sensors, chips, systems, or the internet. Teensy-LC simplifies projects with 2 SPI ports, 2 I2C, and 3 Serial ports.
Efficient USB Communication: Teensy-LC supports various USB protocols like USB Serial, MIDI, Keyboard, Mouse, Joystick, and RawHID with minimal CPU overhead.
Hardware Timers: With 7 timers, Teensy-LC ensures compatibility with popular libraries that require hardware timers.
Analog Input & Output: Featuring 13 analog input pins and a 12-bit digital-to-analog converter for precise analog output.
32 bit ARM Cortex M0+ Processor: A powerful CPU designed for lower power devices with 48 MHz speed.
5 Volt Buffer For WS2812/NeoPixel LED Projects: Directly drive WS2812/NeoPixel LEDs with the 5V output provided by Teensy-LC.
Package Includes:
- 1 x Teensy LC USB Micro-controller Development Board
- 1 x PinOut Drawing Card
*Images are for illustration only; actual product may vary.
