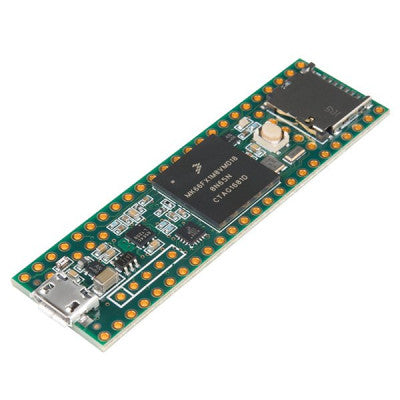

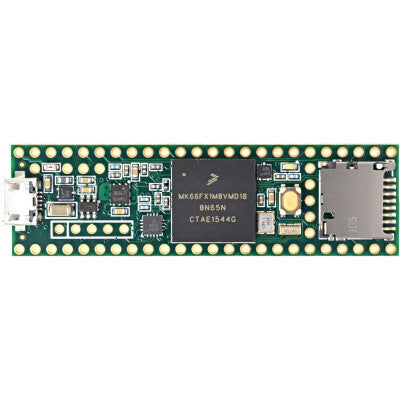

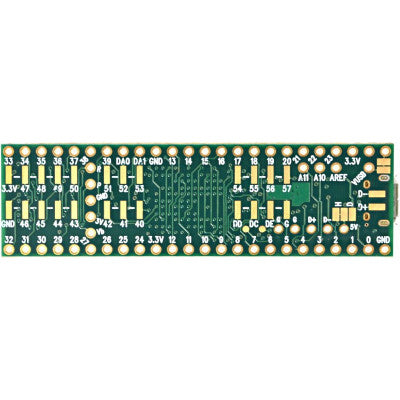

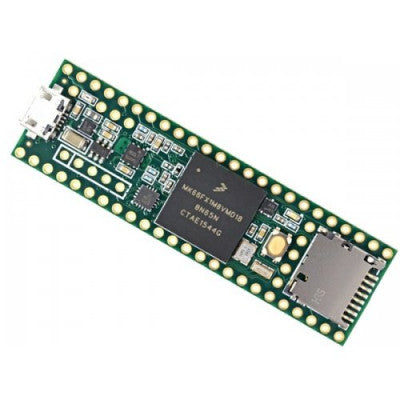

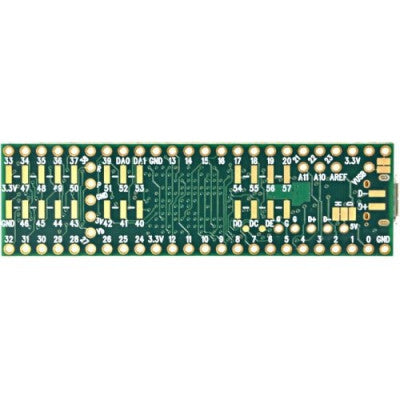

Teensy 3.6 Development Board
A powerful 180MHz ARM Cortex-M4 board with extensive features for complex projects.
- Processor: MK66FX1M0VMD18
- Core: Cortex-M4F
- Rated Speed: 180 (Overclockable up to 240)
- Memory: Flash Memory: 1024, Cache: 8192 Bytes, RAM: 256 kbytes, EPROM: 4096 bytes
- Direct Memory Access: 32 Channels
Top Features:
- 180 MHz ARM Cortex-M4 with FPU
- 1M Flash, 256K RAM, 4K EEPROM
- USB High Speed Port, 2 CAN Bus Ports
- 32 General Purpose DMA Channels
The Teensy 3.6 is a breadboard-friendly development board packed with features. It comes pre-flashed with a bootloader for easy programming via USB. You can use C or Arduino IDE with Teensyduino for programming. The board can emulate various USB devices, making it ideal for USB-MIDI and HID projects. With a 32-bit, 180MHz processor, it offers multiple DMA channels, high-resolution ADCs, and an I2S digital audio interface. The board also features interval timers, interrupt-capable digital pins, and 3.3V tolerance.
Measuring 62.3mm x 18.0mm, the Teensy 3.6 is larger and faster than its predecessor, the Teensy 3.5. It boasts an upgraded ARM Cortex MCU, increased memory, and more accessible pins. The onboard micro SD card port enhances its capabilities for complex projects.
- Package Includes: 1 x Teensy 3.6 Development Board, 1 x Pinout Drawing Card
Specifications:
- Processor: MK66FX1M0VMD18
- Core: Cortex-M4F
- Rated Speed: 180 (Overclockable up to 240)
- Memory: Flash Memory: 1024, Cache: 8192 Bytes, RAM: 256 kbytes, EPROM: 4096 bytes
- Direct Memory Access: 32 Channels
- Bandwidth: 411 Mbytes/sec
- I/O Pins: Digital I/O: 58 Pins, Breadboard I/O: 40+2 Pins, Voltage Output: 3.3V, Current Output: 10 mA, Voltage Input: 3.3 V Only, Interrupts: 58 Pins, Analog Input: 25 Pins, Analog Output: 2 Pins
- Timers: Total Timers: 19, PWM, 16 bit: 6, Total PWM Outputs: 22, PDB Type: 1, CMT Type: 1, LPTMR Type: 1, PIT/Interval: 4, IEEE1588: 4, Systick: 1, RTC: 1
- Communications: USB: 2, Serial: 6, With FIFOs: 2, High Res Baud: 5, SPI: 3, With FIFOs: 1, I2C: 4, CAN Bus: 2, Digital Audio: 2, SD Card: 1, Ethernet: 1
