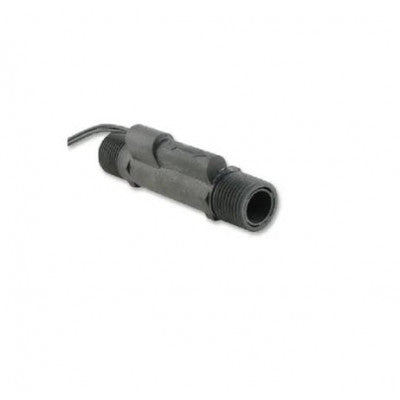

FCS-01 Flow Switch Sensor
A reliable flow switch sensor for liquid or air flow sensing
- Housing Material: Noryl
- Max Switching Voltage VDC: 200
- Max Switching Voltage VAC: 250
- Max Switching Current Amps: 1
- Max Switching Load Watt: 40
- Shuttle Material: Noryl
- Spring Material: Stainless Steel
- Contact Material: Ruthenium
- Operating Temperature: -30 to 85°C
- Medium: Water
- Shock: 50g for 11ms Duration
- Vibration: 35g up to 500Hz
- Maximum Pressure: 10 Bar @ 20°C
Top Features:
- UL94-HB Flammability rating
- Minimum pressure drop
- Operates from a small head of water
- Mount in any axis
The FCS-01 Flow Switch Sensor offers design engineers reed switch reliability (file E125629) for sensing in-line flow of liquid or air. It features 3/8-inch BSP male threaded fittings and is suitable for hot and cold potable water. The sensor comes in a black Noryl housing with Ruthenium contacts, making it ideal for applications such as leak detection, flow sensing, mains water control, cooling systems, and circulation pump protection.
Package Includes: 1 x TE CONNECTIVITY Flow Switch, FCS-01
* Images are for illustration only; actual product may vary.
