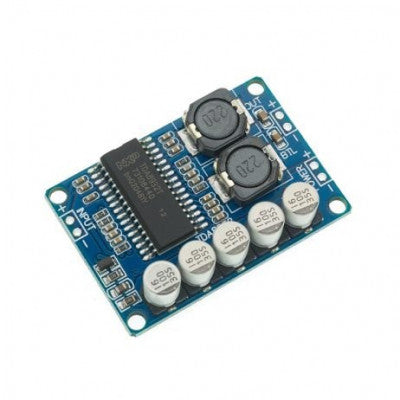

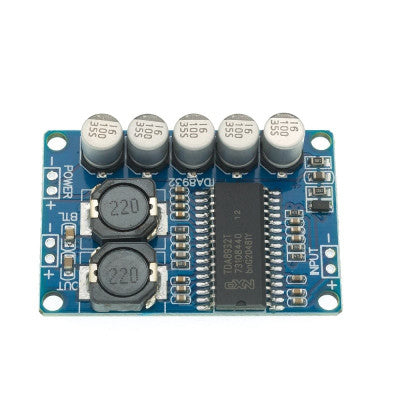

TDA8932 Digital Power Amplifier Board
A high-performance digital amplifier module for audio applications.
- Module Type: TDA8932 35W
- Operating Voltage: Single DC10 ~ 30V
- Recommended Voltage: 24V
- Current: Above 2A Switching Power Supply
- Output Power: 35W x 1
- Speaker Impedance: 4-8 ohm, 8 ohm best
- Circuit Configuration: Mono BTL Output
Features:
- High-performance TDA8932 digital amplifier chip
- Good quality sound output
- Mono digital audio power amplifier
- High output with low power consumption
The TDA8932 Digital Power Amplifier Board utilizes a high-performance digital amplifier TDA8932 chip, offering high efficiency, power, and excellent sound quality. It is designed for applications such as active speaker transformations, audio project implementations, and product developments without the need for additional radiator installation.
With an operating voltage of DC10 ~ 30V and recommended voltage of 24V, this module delivers an output power of 35W x 1. It is suitable for speakers with impedance ranging from 4-8 ohms, with 8 ohms being optimal. The circuit configuration is Mono BTL Output.
Package Includes: 1 x TDA8932 Digital Power Amplifier Board
* Images are for illustration only; actual product may vary.
