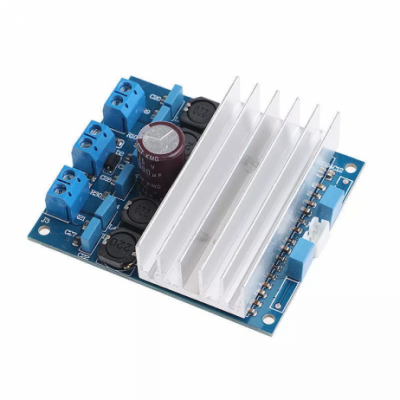

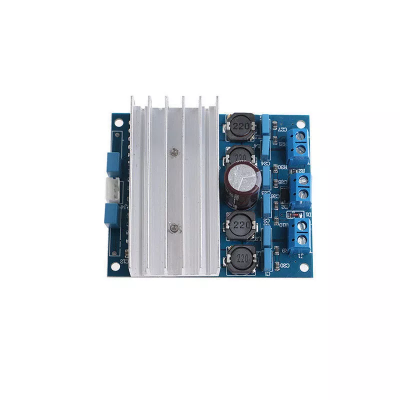

FX-Audio TDA7492 2x50W Class D Amplifier Module
Delivers high-efficiency power with Class D architecture and BTL mode option
- Model: TDA7492
- Input Voltage (V): 10 to 26
- Working Mode: Class D (PWM modulation type)
- Power (W): 50
- Length (mm): 72
- Width (mm): 58
- Height (mm): 21
- Weight (gm): 58
Top Features:
- 2 x 50W @ 8 ohms output
- Can be used in BTL mode for 1 x 100W @ 4 ohms
- Includes heat sink for proper heat dissipation

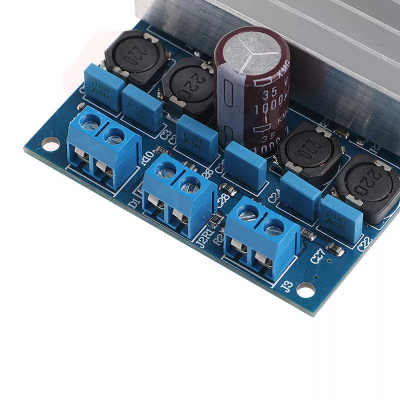

- PH 2.0mm 3 pins connector at input, screw terminals at output
When the speaker impedance is 4 ohms, the operating voltage must be less than 18V. When the speaker impedance is 6 ohms, the operating voltage cannot exceed 24V. For 8 ohms, the working voltage should not exceed 26V. Ensure the power does not reverse the polarity.

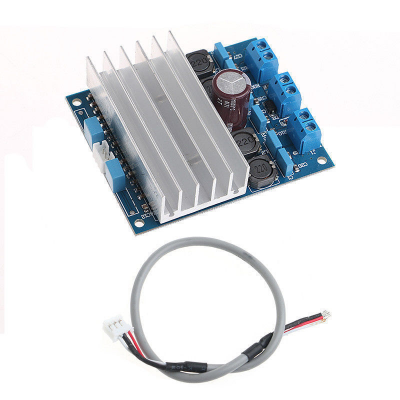

Package Includes: 1 x TDA7492 50*2 100W HighPower Digital Amplifier Board, 1 x 8 Stereo Wiring Cable
Images are for illustration only; actual product may vary.
