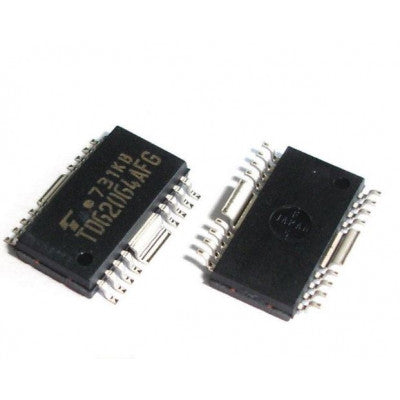

TD62064AFG Darlington Drivers
High-voltage darlington drivers with integral clamp diodes
- Output current (single output): 1.5 A (max)
- High sustaining voltage output: 50 V (min)
- Output clamp diodes
- Input compatibility: TTL and 5 V CMOS
- GND terminal: Heat sink
- Package type: AFG: HSOP-16 pin
Top Features:
- High-voltage, high-current darlington pairs
- Integral clamp diodes for inductive loads
- Compatible with TTL and 5V CMOS
- GND terminal can be used as a heat sink
The TD62064AFG darlington drivers are ideal for applications such as relay, hammer, lamp, and stepping motor drivers. The unit consists of four NPN darlington pairs, providing high output current and sustaining voltage. Each driver comes equipped with integral clamp diodes, making it suitable for switching inductive loads. The input is compatible with TTL and 5V CMOS signal levels. The GND terminal of the driver can be effectively utilized as a heat sink for thermal management. Packaged in HSOP-16 pin configuration, the TD62064AFG is a versatile solution for various high-voltage driver requirements.
*Images are for illustration only; actual product may vary.
