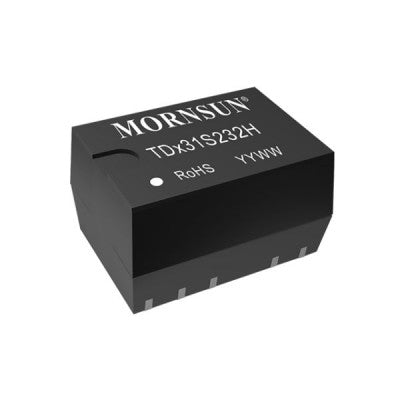

TD531S232H Mornsun Single High Speed RS232 Isolated Transceiver - SMD Package
Compact isolated transceiver with high baud rate and enhanced EMC performance.
- Isolation Transceivers: Yes
- I/p Voltage range: 4.75-5.25(vdc)
- Nominal voltage: 5(vdc)
- Baud rate: 115200bps
- Static current: 20mA
- Max operating current(mA): 60mA
- Package Includes: 1 x TD531S232H Mornsun Single High Speed RS232 Isolated Transceiver - SMD Package
Top Features:
- Meets EIA/TIA-232-F standard
- Small SMD12 size: 17.00 x 12.14 x 9.45mm
- High baud rate up to 115200bps
- Isolation test voltage: 2500 VDC
Enhance your electronic projects with the TD531S232H Mornsun Single High Speed RS232 Isolated Transceiver. This compact transceiver is designed to meet the EIA/TIA-232-F standard and offers a high baud rate of up to 115200bps. With a small SMD12 size of 17.00 x 12.14 x 9.45mm, it is suitable for various applications.
The transceiver features an isolation test voltage of 2500 VDC, ensuring reliable performance. It also includes an integrated isolated DC/DC converter for added convenience. Operating within an ambient temperature range of -40C to +85C, this transceiver provides stable operation in diverse environments.
With enhanced EMC performance and EN62368 approval, this transceiver offers a reliable solution for your communication needs. Whether you are working on industrial automation, telecommunications, or other projects, the TD531S232H is a versatile choice.
For detailed technical information, you can download the datasheet provided. Need more details or interested in bulk pricing? Reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
