TC4427 MOSFET Driver
Improved version with matched rise and fall times, latch-up resistance, and high capacitive load drive capability.
- High Peak Output Current: 1.5A
- Wide Input Supply Voltage Operating Range: 4.5V to 18V
- High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)
- Short Delay Times: 40 ns (typical)
- Matched Rise and Fall Times
-
Low Supply Current:
- With Logic ‘1’ Input – 4 mA
- With Logic ‘0’ Input – 400 µA
- Low Output Impedance: 7?
- Latch-Up Protected: Withstands 0.5A Reverse Current
- Input Withstands Negative Inputs Up to 5V
- Electrostatic Discharge (ESD) Protected: 2.0 kV
Top Features:
- High Peak Output Current: 1.5A
- Wide Input Supply Voltage Range: 4.5V to 18V
- High Capacitive Load Drive Capability
- Short Delay Times: 40 ns
The TC4427 MOSFET drivers can easily charge/discharge 1000 pF gate capacitances in under 30 ns. These devices provide low enough impedances in both the On and Off states to ensure the MOSFET’s intended state is not affected, even by large transients.
Applications:
- Switch Mode Power Supplies
- Line Drivers
- Pulse Transformer Drive
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416

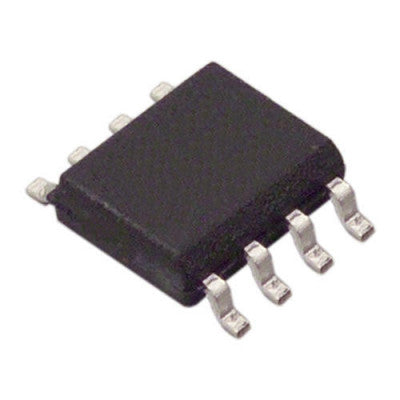

Images are for illustration only; actual product may vary.
