TC-T7-H
Upgrade of LCR-T7 with automatic detection and colorful display
- Spec name: Upgraded version of LCR-T7
- Spec name: Automatic detection of various components
- Spec name: Built-in lithium battery
- Spec name: 3 inches full-color LCD display
Top Features:
- 3 Colorful display
- Detects NPN-PNP transistors, capacitors, resistors, MOSFET, etc.
- Self-calibration function
- One Button Operation

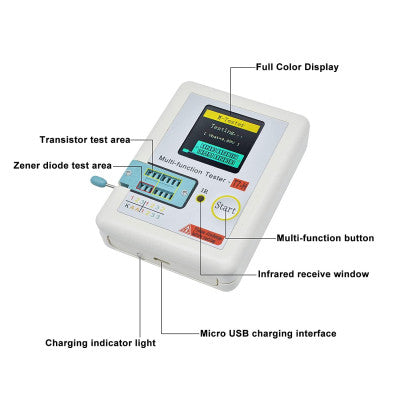

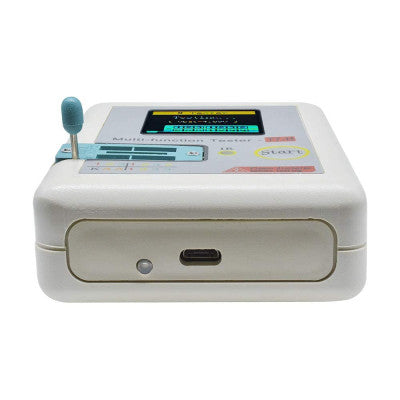

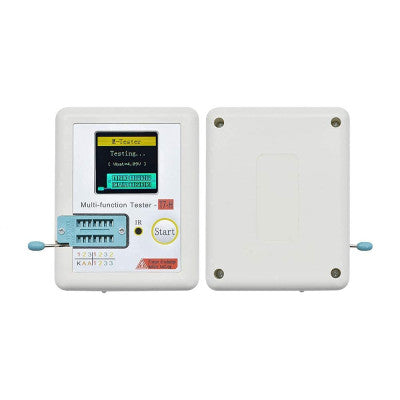

The TC-T7-H is an upgraded version of LCR-T7, offering automatic detection of various components such as NPN and PNP transistors, MOSFET, diodes, resistors, and capacitors. It features a built-in lithium battery for convenience and a 3-inch full-color LCD display. After component detection, the tester can decode infrared signals from remote controls. The tester also includes automatic shutdown and manual shutdown functions for efficiency.
How To Use: Put the component in the Zip socket and press the locking latch. Press the start button after placing the component to display its value and type on the screen.

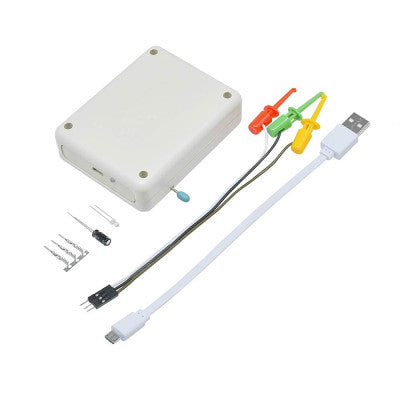

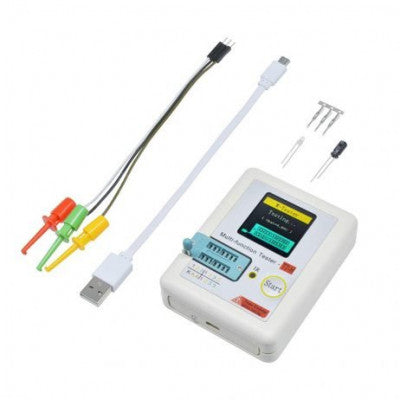

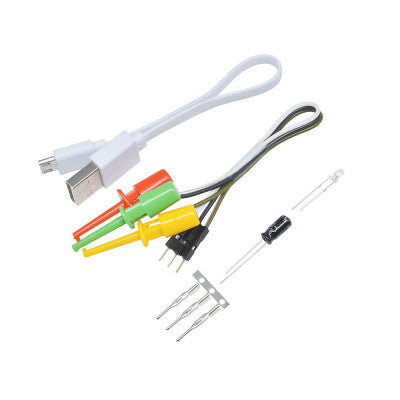

Package Includes:
- 1 x TC-T7-H Full-Color, Multifunction Tester Unit
- 1 x USB cable
- 3 x Test Leads
Images are for illustration only; actual product may vary.
