Toshiba TB67S109 Stepper Motor Driver
High-performance stepper motor driver with advanced features
- Motor Input Voltage: 9 ~ 50 VDC
- Logic Interface Input Voltage: 3 ~ 5 VDC
- Single Phase Current: 4 A
- Microsteps: 1/32
- Length: 22 mm
- Width: 15 mm
- Height: 25 mm
- Weight: 6 gm
Top Features:
- Supports full step, half step, and multiple microstep modes
- Maximum input voltage: 50V
- Maximum output current: 4A with good heat dissipation

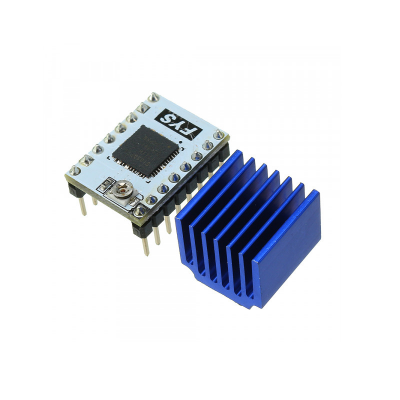

- Equipped with a large heatsink for efficient cooling

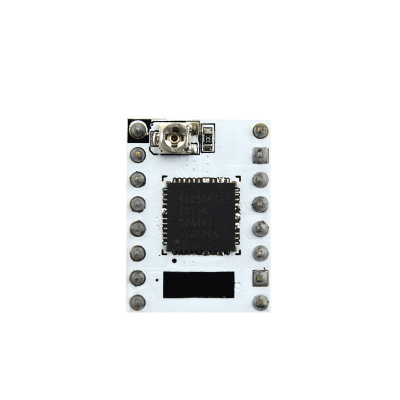

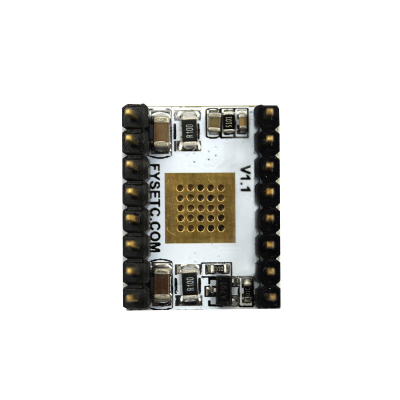

This stepper motor driver, based on the Toshiba TB67S109 chip design, features a four-layer thick copper PCB with automatic patch processing. It utilizes the indexer (DIR / STEP) control interface and can drive currents up to 4A. Compatible with 57 stepper motors following the Pololu pin definition.

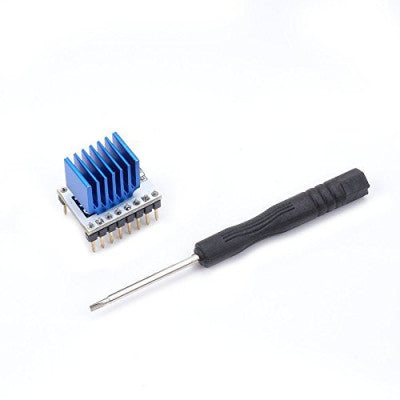

The package includes 1 x TB67S109 Stepper Motor Driver Board, 1 x Heat Sink with Thermal Pad, and 1 x Screw Driver.
* Images are for illustration only; actual product may vary.
