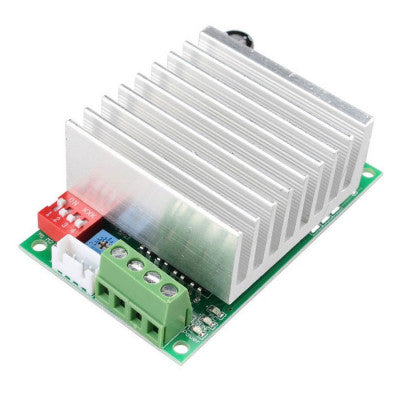

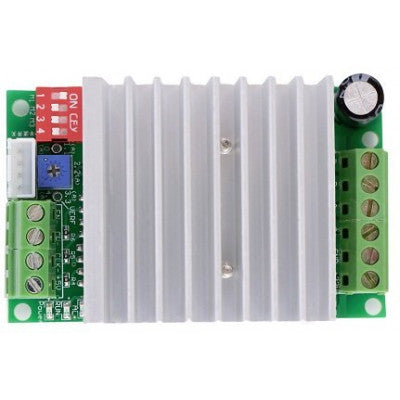

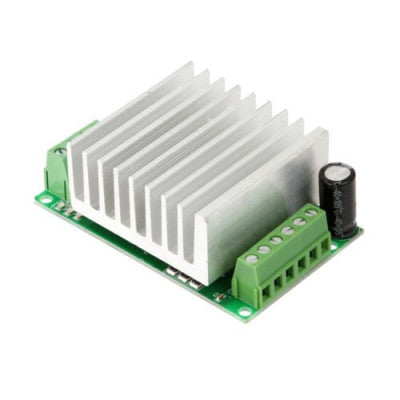

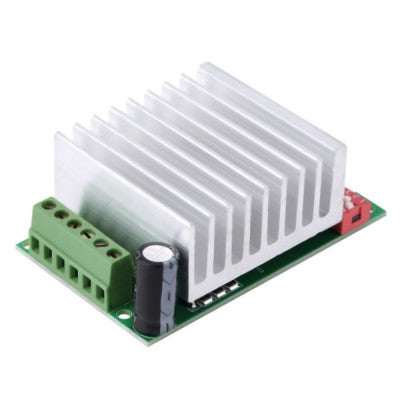

TB6600 Stepper Motor Driver Controller Module 4.5A 8-50V TTL 16 Micro-Step CNC
High-power driver suitable for both amateur and professional CNC systems.
- Model: TB6600
- Input Supply Voltage (VDC): 8 ~ 50
- Operating Voltage (VDC): 36
- Max. Output Current (Amp): 0.3 to 4.5
- Micro Step: 1, 2, 8, 16
- Maximum PWM frequency (Hz): 2000
- Hold Current Adjustment: 50% or 100%
- Operating Temperature (C): -10 to 50
- Length (mm): 82
- Width (mm): 50
- Height (mm): 30
- Weight (gm): 120
Top Features:
- Infinitely adjustable output current
- Automatic half current function
- High-speed optical coupling 6N137
- Output short-circuit protection

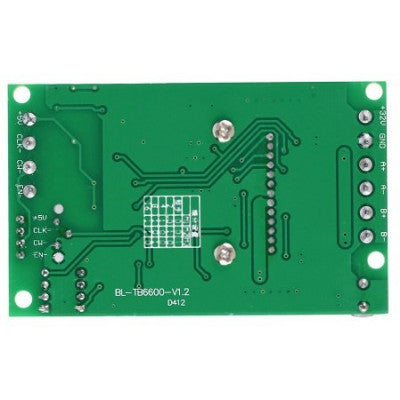

Based on the TB6600HG chip, the new BL-TB6600-V1.2 driver model is a significant upgrade from the previous BL-TB6560-V2.0 driver. It is designed for both amateur and professional CNC systems, offering increased power output, operating voltage, and current compared to its predecessor.
The driver features intelligent current control and PWM modulation, allowing connection to stepper motors of various supply voltages and currents while limiting the maximum current. The maximum operating frequency has also been increased for improved performance.

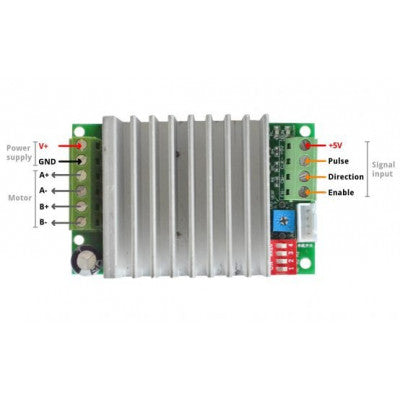

The package includes 1 x TB6600 Stepper Motor Driver Controller Module 8-50V 4.5A. For wiring and running the TB6600 stepper driver with Arduino, refer to the provided tutorial.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
