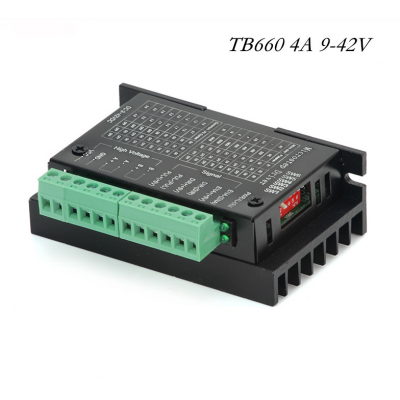

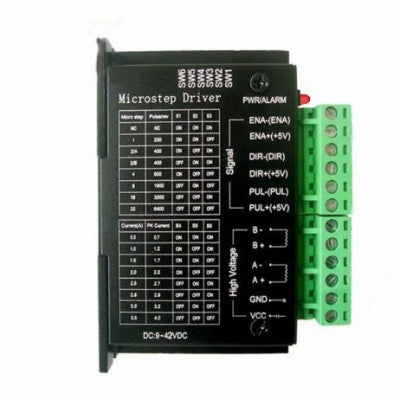

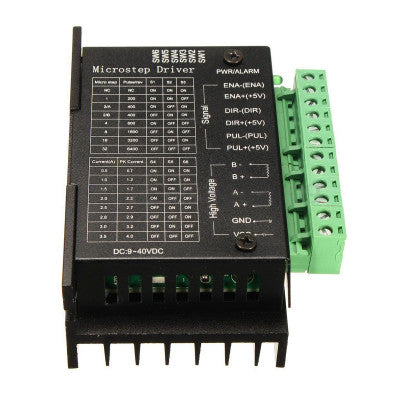

TB6600 Arduino Stepper Motor Driver
Professional stepper motor driver compatible with Arduino
- Input Supply Voltage: 9 ~ 42 VDC
- Supply Current: 0 to 5 A
- Max. Output Current: 3.3 to 24 Amp
- Control Signal: 3.3 to 24
- Max Power Output: 160 W
- Micro Step: 1, 2A, 2B, 8, 16, 32
- Operating Temperature: -10 to 50°C
- Length: 100 mm
- Width: 70 mm
- Height: 40 mm
- Weight: 150 gm
Features:
- H bridge bipolar constant current drive
- 4.0 A peak current
- 32 subdivision modes
- High-speed photoelectric isolation
TB6600 Arduino Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. The driver has a wide range of power input, 9-42VDC power supply, and is able to output 4A peak current, suitable for most stepper motors. It supports speed and direction control and allows you to set micro steps and output current with 6 DIP switches. The driver can drive 57, 42-type two-phase, four-phase, hybrid stepper motors.
The TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step is an upgraded version suitable for high subdivision applications. It supports step motors 57, 42, 86Type 4 phase 2 phase (4 line 6 line 8).
Package Includes:
- 1 x TB6600 Stepper Motor Driver Controller 4A 9-42V TTL 16 Micro-Step
