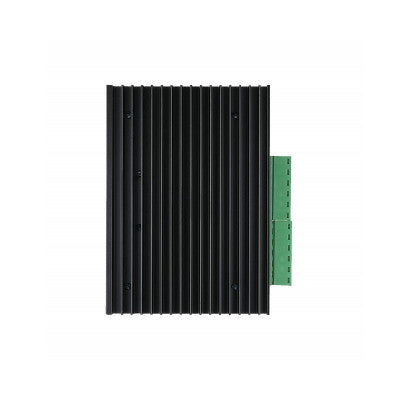

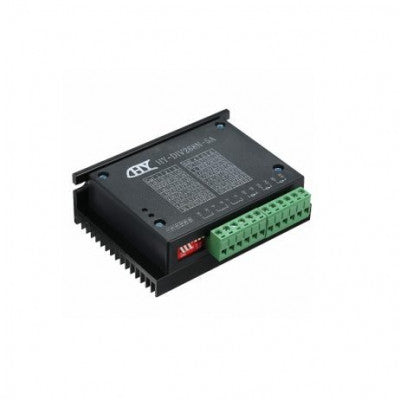

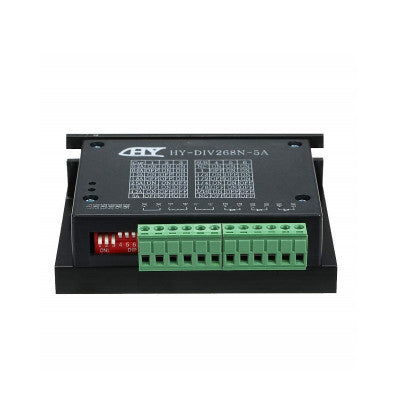

TB6600 Stepper Motor Driver
An easy-to-use professional stepper motor driver compatible with Arduino
- Input Supply Voltage: 12 ~ 48 VDC
- Supply Current: 1 to 5 A
- Max. Output Current: 0.2 to 5 A
- Max Power Output: 160 W
- Operating Temperature: -10 to 45°C
- Length: 105 mm
- Width: 75 mm
- Height: 35 mm
- Weight: 220 gm
Top Features:
- H bridge bipolar constant current drive
- 5.0 A peak current output
- 32 subdivision modes selectable
- High-speed optocoupler isolation

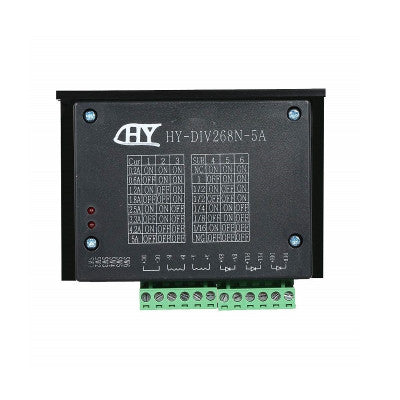

TB6600 Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase hybrid stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. The driver has a wide range of power input, 12~48VDC power supply, and is able to output 5A peak current, suitable for most stepper motors. It supports speed and direction control and allows you to set the output current with 6 DIP switches, offering 8 kinds of current control options (0.2A to 5A). All signal terminals adopt high-speed optocoupler isolation, enhancing anti-high-frequency interference ability. This professional device can drive 57, 42-type two-phase hybrid stepper motors.
Package Includes: 1 x TB6600 0.2-5A CNC Controller Stepper Motor Driver Single Axes Two Phase Hybrid Stepper Motor for CNC
*Images are for illustration only; actual product may vary.
