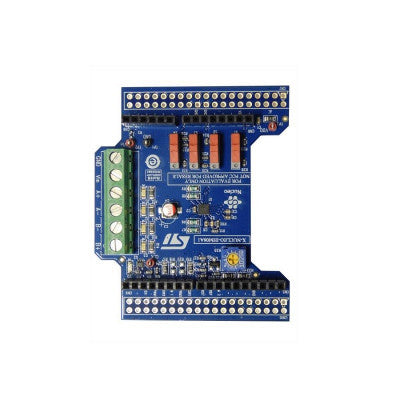

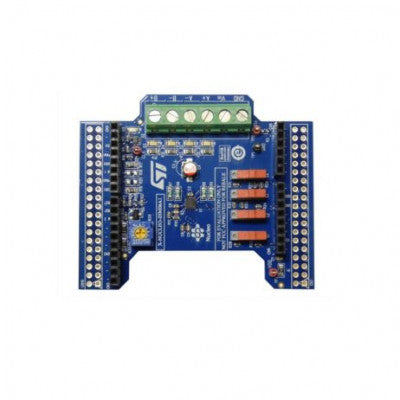

X-NUCLEO-IHM06A1 Low-Voltage Stepper Motor Driver Expansion Board
An affordable solution for driving low-voltage stepper motors in STM32 Nucleo projects.
- Low voltage range: 1.8 to 10V
- Microstep adjustment: up to the 256th step
- Phase current: up to 1.3A
- Current control: with adjustable off-time
- Full protection: overcurrent and short circuit protection
- Thermal shutdown: Yes
- Compatible with: Arduino UNO R3 connector
- Compatible with: STM32 Nucleo boards
Top Features:
- Low voltage range: 1.8 to 10V
- Microstep adjustment up to 256th step
- Phase current up to 1.3A
- Current control with adjustable off-time
The X-NUCLEO-IHM06A1 is a low-voltage stepper motor driver expansion board based on the STSPIN220 monolithic low-voltage driver for low-voltage stepper motors. It offers an easy-to-use solution for driving low-voltage stepper motors in various applications such as thermal printers, robotics, and toys. The stepper driver can operate in low voltage scenarios, enabling zero consumption states. It also features current control with fixed OFF time and a maximum 1/256 micro step resolution.
Package Includes: 1 x STMICROELECTRONICS Expansion Board, STSPIN220 Low Voltage Stepper Motor Driver, For STM32 Nucleo
Images are for illustration only; actual product may vary.
