Three-phase Brushless DC Motor Driver Expansion Board
An affordable solution for driving brushless motors in your STM32 Nucleo project.
- Spec name: STSPIN830
- Current Sensing: Single and three-shunt
- Connectors: Arduino and ST morpho
- Compatibility: STM32 Nucleo development board
Features:
- Current limiter with adjustable reference
- Overcurrent, short-circuit, and interlocking protections
- Thermal shutdown and undervoltage lockout
- BEMF sensing circuitry, bus voltage, and PCB temperature sensing
It represents an affordable, easy-to-use solution for driving brushless motors in your STM32 Nucleo project, implementing single and three-shunt current sensing. The STSPIN830 embeds a PWM current limiter with adjustable threshold together with a full set of protections. It is compatible with the Arduino and ST morpho connectors, so it can be plugged into an STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards.

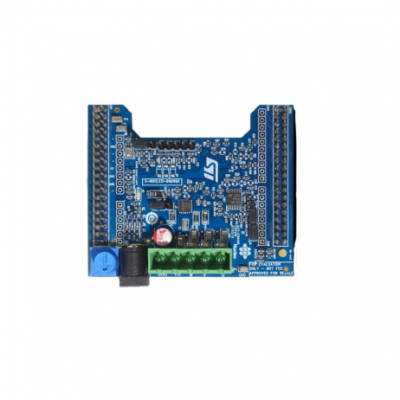

Package Includes: 1 x STMICROELECTRONICS Development Board, STSPIN830 BLDC Motor Driver, 3-Phase, Arduino, ST Morpho, For STM32 Nucleo
Images are for illustration only; actual product may vary.
