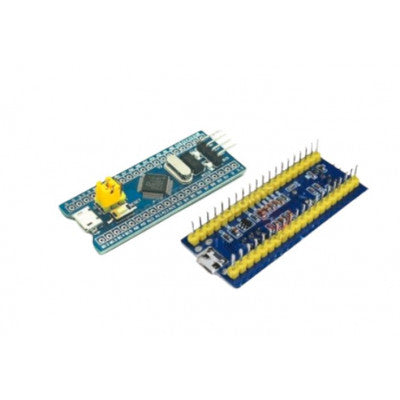

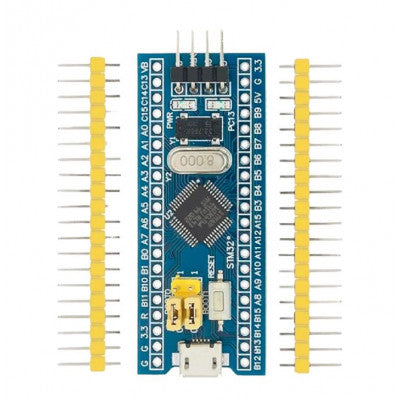

STM32F103C6T6 Minimum System STM32 ARM Core Board
A low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6
- Onboard Mini USB interface: for power supply and USB communication
- Work Frequency: 72MHz
- Flash Memory: 32KB
- SRAM: 20KB
- Power: 2.0-3.6V
- Reset: POR/PDR
- Crystal: 4-16MHz
- Oscillator: 32 kHz for RTC with calibration
Top Features:
- 72MHz work frequency
- 32KB flash memory
- 20KB SRAM
- Onboard Mini USB interface
This board is suitable for learners who want to explore the STM32 microcontroller with ARM Cortex-M3 32-bit core. It comes with up to 2 x I2C interfaces, up to 3 USARTs, up to 2 SPIs, and a CAN interface (2.0B Active).
- Package Includes: 1 x STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module
Images are for illustration only; actual product may vary.
