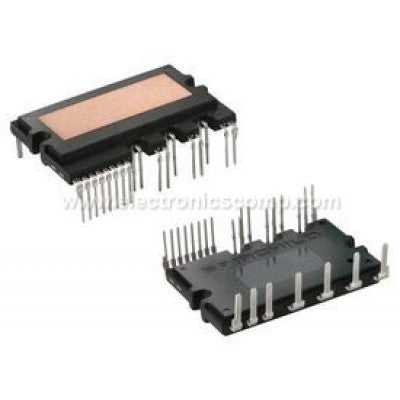

STGIPS20K60 Intelligent Power Module
An intelligent power module providing a high-performance AC motor drive in a compact design.
- Symbol Parameter: Values Units
- VPN Supply voltage: 450 V
- VPN(surge) Supply voltage (surge): 500 V
- VCES IGBT collector-emitter voltage: 600 V
- IC IGBT continuous collector current: 18 A
- ICP IGBT pulsed collector current: 40 A
- PTOT IGBT total dissipation: 52 W
- tscw Short circuit withstand time: 5 µs
Features:
- IPM 18 A, 600 V 3-phase IGBT inverter bridge
- Short-circuit rugged IGBTs
- Internal bootstrap diode
- Isolation rating of 2500 Vrms/min
The STGIPS20K60 is an intelligent power module that provides a compact, high-performance AC motor drive in a simple and rugged design. It combines ST proprietary control ICs with advanced short-circuit rugged IGBT system technology, making it ideal for 3-phase inverters in applications like home appliances and air conditioners.
SLLIMM™ is a trademark of STMicroelectronics.
Applications:
- 3-phase inverters for motor drives
- Home appliances like washing machines, refrigerators, air conditioners, and sewing machines
Related Document: STGIPS20K60 IGBT Data Sheet
