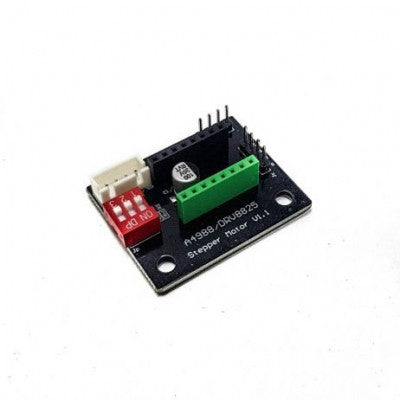

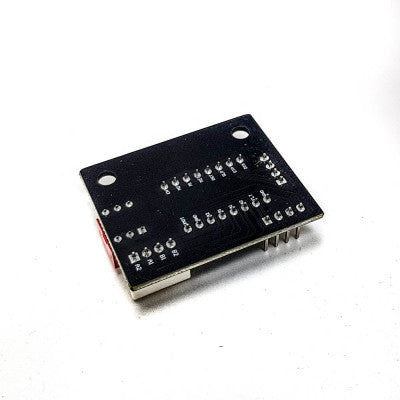

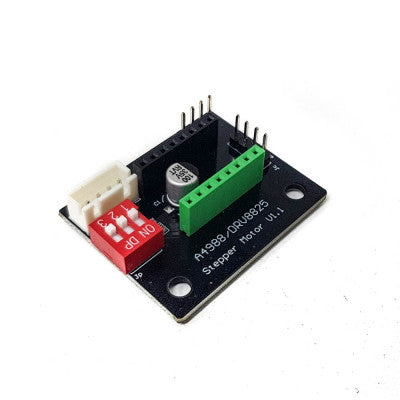

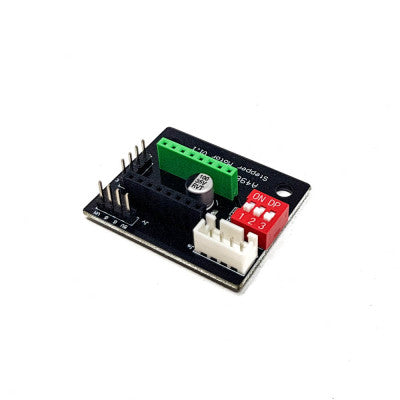

A4988 / DRV8825 Stepper Motor Driver Expansion Board
Extend your A4988 or DRV8825 stepper motor driver module with this expansion board.
- Interface: direction, enable, speed
- Thermal extinguishing circuit: Yes
- Ground connection protection: Yes
- Micro-stepping settings: 3 keys
- Short circuit protection: Yes
Features:
- Direction, enable, speed interface
- Thermal extinguishing circuit
- Ground connection protection
- 3 keys for micro-stepping settings
This expansion board is designed to extend the capabilities of your A4988 or DRV8825 stepper motor driver module. It is important to use caution when inserting the driver to avoid damaging it. The jumper should be set to ON DP to indicate the desired subdivisions (16 for 4988, 32 for 8825).
The white connector is used for connecting the motor, while the female power connector is for connecting 5V and 12V-24V power. The E, S, D connectors correspond to the Enable/Step/Dir drive signal output.
Package included: 1 x Stepper motor driver for 3D printer parts A4988/8825
Images are for illustration only; actual product may vary.
