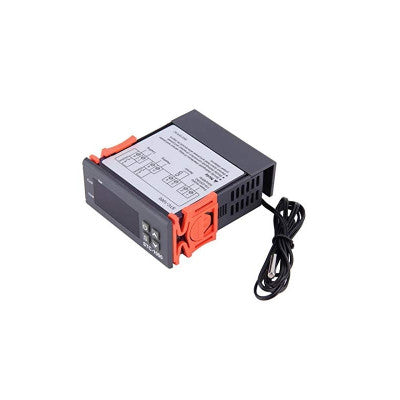

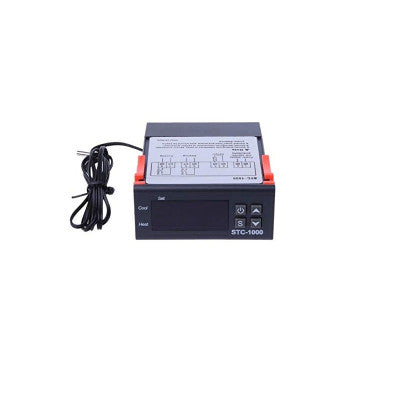

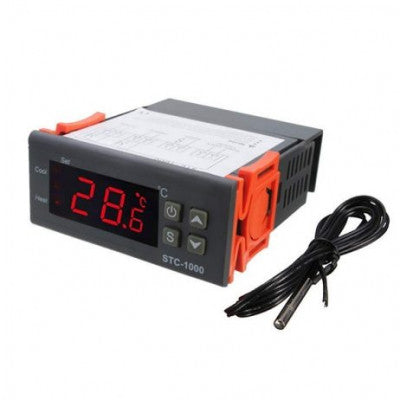

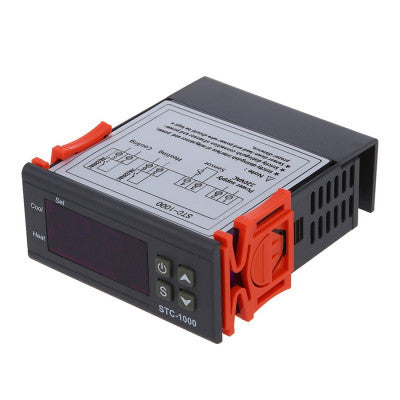

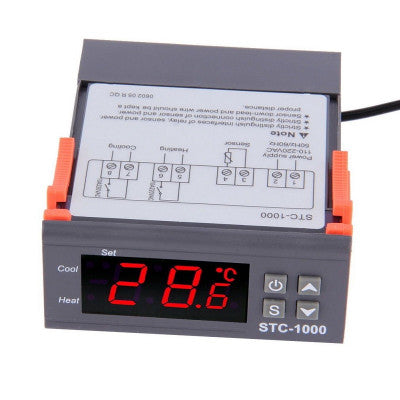

STC-1000 DC24V Digital Temperature Controlled Thermostat Switch
Temperature-controlled thermostat switch with NTC sensor for precise heating/cooling control.
- Model: STC-1000
- Operating Voltage (VDC): 24
- Temperature Measuring Range: -50 to 90°C
- Control Temperature Range: -50 to 90°C (Adjustable)
- Control Temperature Difference: 0.3 to 10°C (Adjustable)
- Relative Humidity: 20 to 85%
- Resolution: 0.1°C
- Accuracy: ±1°C
- Sensor: NTC sensor
- Sensor Cable Length: 1m
- Relay Output Capacity: Heating: 10A (max) 250V, Cooling: 10A (max) 250V
- Dimensions: Length: 84mm, Width: 69mm, Height: 34mm
- Weight: 100g
- Shipment Weight: 0.11 kg
- Shipment Dimensions: 10 x 10 x 5 cm
Features:
- Mini temperature controller
- Clear LED display
- Wide temperature measuring range
- Dual heating and cooling control
This temperature-controlled thermostat switch is ideal for outdoor use and applications involving chemical contamination or electrical interference. It is suitable for various systems and equipment, including nuclear energy control systems, medical equipment, and domestic appliances like freezers and refrigerators.
The module operates with 24VDC input and features automatic over-temperature alarm and high control precision of 0.1°C. It comes with a user manual for easy setup.
* Images are for illustration only; actual product may vary.
