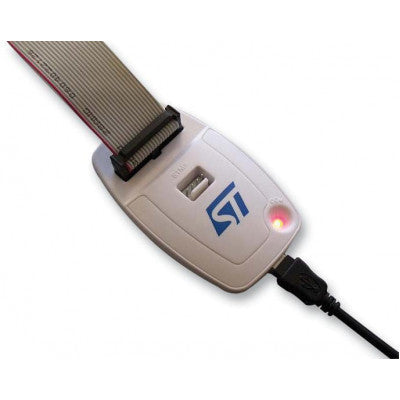

ST-LINK/V2 In-Circuit Debugger and Programmer
An essential tool for debugging and programming STM8 and STM32 microcontroller families.
- Support: STM32 SWD interface debugging
- Support: STM8 all series download
- Support: Firmware auto upgrade
- Size: 50*28*14mm
Top Features:
- 5 V power via USB connector
- USB 2.0 full-speed-compatible interface
The ST-LINK/V2 is equipped with a single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces to communicate with STM8 or STM32 microcontrollers on application boards. It shares features with the ST-LINK/V2-ISOL, including digital isolation up to 1000 Vrms.
The debugger uses a USB full-speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software for STM8 applications and various integrated development environments for STM32 applications.
SWIM Specific Features:
- Application Voltage: 1.65 V to 5.5 V
- Programming Speed Rate: 9.7 Kbytes/s (low speed) and 12.8 Kbytes/s (high speed)
JTAG/SWD Specific Features:
- Application Voltage: 1.65 V to 3.6 V
- Supported: JTAG and SWD

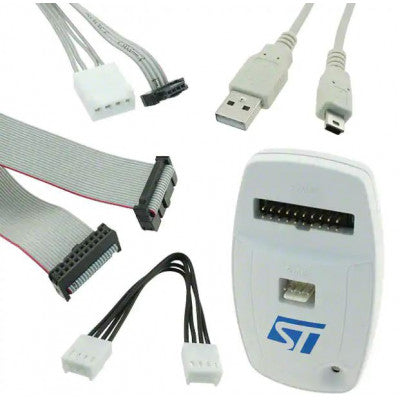

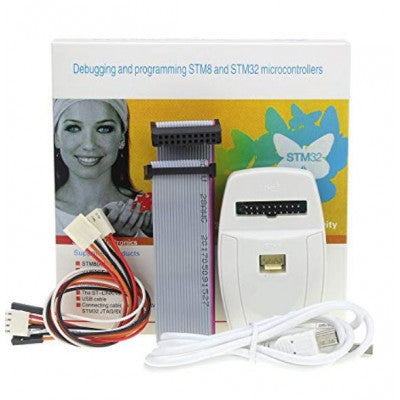

Package Includes:
- ST-LINK V2 Emulator
- Mini USB T-plug cable
- FRC cable with 20 pin connector
- Dual Female connectors
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
