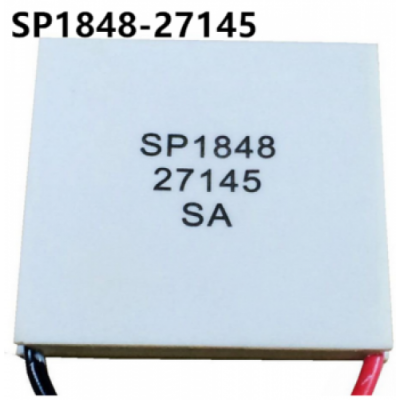

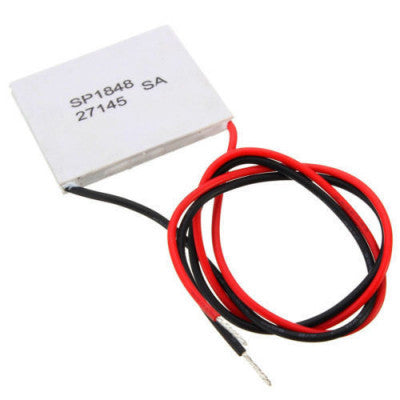

SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module
Generate electric power with this magical Peltier effect cell.
- Model: SP1848-27145
- Open Circuit Voltage (V): 4.8
- Operating Temperature (C): 0 to 150
- Maximum Temperature (C): 150
- Wire Length (mm): 350
- Length (mm): 40
- Width (mm): 40
- Height (mm): 3.6
- Weight (gm): 30
Top Features:
- Small and lightweight for convenience
- Designed for power generation
- Sealed for moisture protection
- High-temperature 150C with NM static protection
The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module operates up to 150C, providing different voltage and current outputs based on temperature values. It detects temperature differentials on each side, allowing you to generate electricity by applying heat on one side and cold on the other. This module will generate a moderate amount of voltage with mA of current, making it a reliable semiconductor-based generator.
Operating Tips: Do not exceed the maximum operating temperature of the module. Life expectancy is 200,000 hours with a failure rate of 0.2% based on long-term testing.
Note: Model number side is exposed to heat-sink or ice, and the opposite side to heat. Apply 2-3 drops of grease compound on both sides of the TEG Module.
Package Includes: 1 x SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module
*Images are for illustration only; actual product may vary.
