SOIC TO DIP 20 PIN Adapter
Perfect for use with Arduino / Raspberry Pi or any microcontroller.
- No. of Pins: 20 (each side)
- Pitch (mm): 2.54
- Length (mm): 10
- Width (mm): 22
- Weight (g): 20
Top Features:
- Tiny size
- 8-pin SOIC to adapter

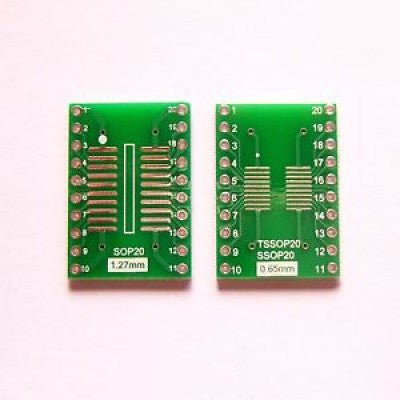

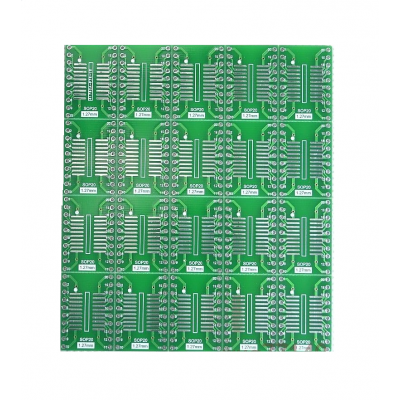

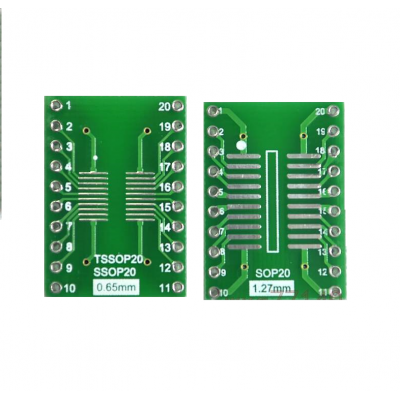

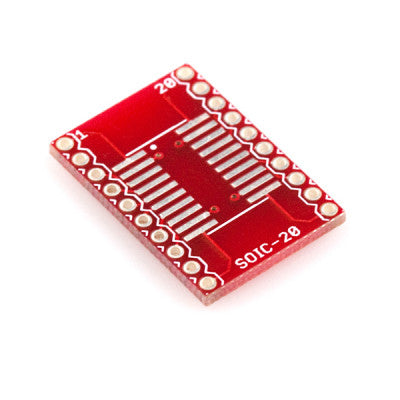

This Double-Side PCB Circuit Board has 20 pins. One side has a pin pitch size of 1.27mm, suitable for most SO20, SOP20, SOIC20 to 2.54mm DIP. The other side has a pin pitch size of 0.65mm, suitable for most SSOP20, TSSOP20, MSOP20 to 2.54mm DIP. The 8-Pin SOIC to DIP Adapter allows you to adapt SOIC packages into a DIP footprint, useful for modding and upgrading devices using 8-pin DIP ICs when only SOIC footprint is available. It is also great for prototyping to make SOIC packages compatible with solderless breadboards.
The PCB board features a 2.54mm pitch Pin Header for easy mounting. It can be directly plugged into a 2.54mm pitch PCB board, breadboard, and 600mil width 20 pin DIP socket.
Images are for illustration only; actual product may vary.
