SMB Connectors for Industry-Grade Cables
Designed for compatibility with 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Main Application: Aerospace and Defense: Test Stands, Medical: Telemetry, Commercial Vehicle: GPS, Telecommunications: Wireless Base Stations, Cellular Mobile System, Data/Communications: Routers, WIFI, Radio Boards, Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Features:
- Cable Connector, plug/male, Straight/180, 50, Crimp Type
- Snap-on coupling design for fast installation
- Broadband performance and low reflection
- Die casting process in non-critical areas to reduce costs
High Quality with 30 days 100% Money back; From the OEM Original Factory, same quality with much better price.
Specifications:
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: Crimp
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~4 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG316, RG402; 750 V rms min. for RG178
- Working Voltage: 335 V rms max. for RG316, RG402; 250 V rms max. for RG178
- Center Contact Resistance: 6.0 m (Milliohms max.)
- Outer Contact Resistance: 1.5 m (Milliohms max.)
- Insulation Resistance: 1000 m(Megohms min.)
Mechanical Characteristics:
- Coupling: Snap-on
- Contact Retention: 4lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Environmental Characteristics: -65C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes:

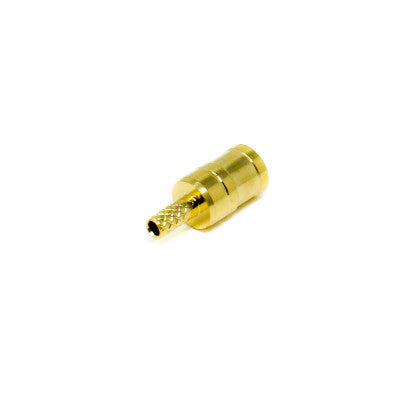

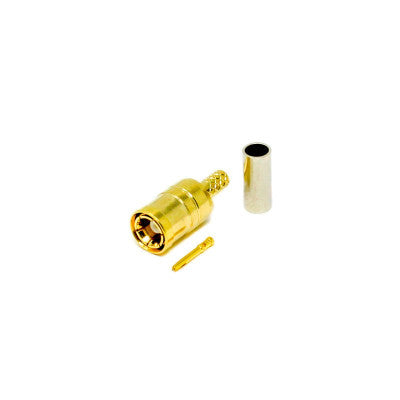

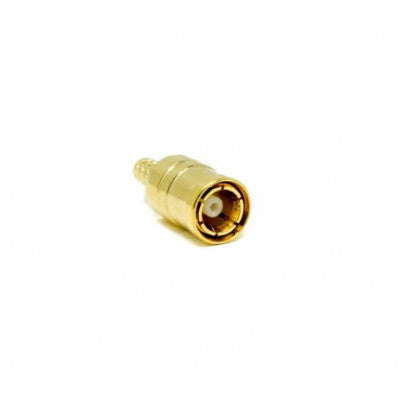

- 1 x SMB Connector Male Straight Crimp type for Cable
*Images are for illustration only; actual product may vary.
