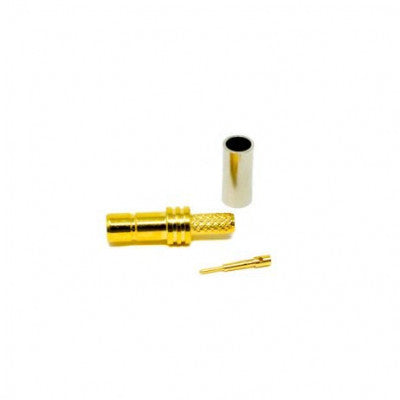

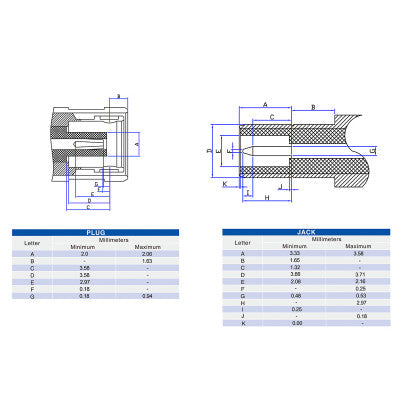

SMB Connector Female Straight Crimp Type
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: Crimp
Top Features:
- Snap-on coupling design for fast installation
- Broadband performance and low reflection
- Die casting process in non-critical areas for cost reduction
These SMB connectors are ideal for various applications including:
- Aerospace and Defense: Test Stands
- Medical: Telemetry
- Commercial Vehicle: GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Routers, WIFI, Radio Boards
- Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~4 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 1000 V rms min for RG316, RG402; 750 V rms min for RG178
- Working Voltage: 335 V rms max for RG316, RG402; 250 V rms max for RG178
- Center Contact Resistance: 6.0 m (Milliohms max.)
- Outer Contact Resistance: 1.5 m (Milliohms max.)
- Insulation Resistance: 1000 m (Megohms min.)
Mechanical Characteristics:
- Coupling: Snap-on
- Contact Retention: 4lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +155°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x SMB Connector Female Straight Crimp Type For Coaxial Cable
*Images are for illustration only; actual product may vary.*
