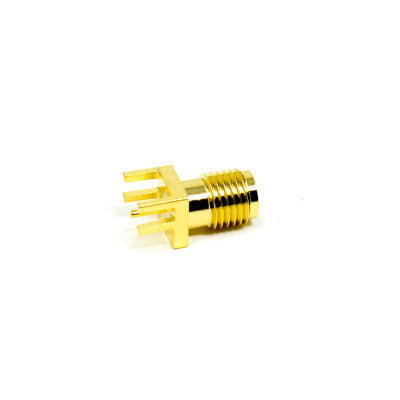

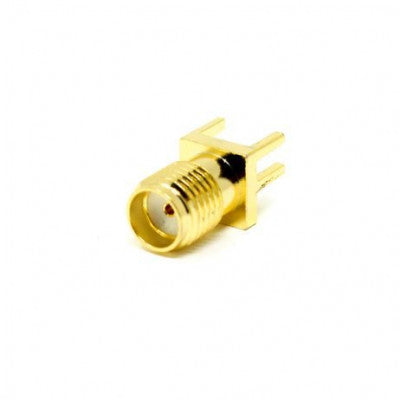

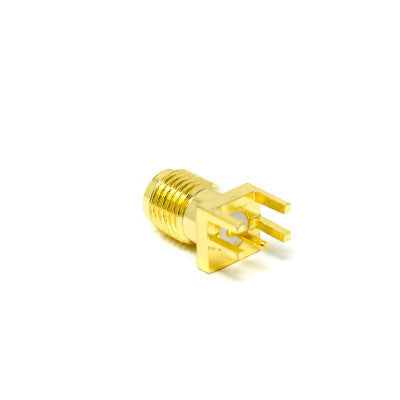

50 Ohm SMA Female Straight Edge PCB Mount Connector
Designed for compatibility with industry-grade cables, with gold and nickel plating for environmental protection.
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount
- Mounting Feature: Plate Edge Mount
- Function: Other
- Body Material: Copper
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: NA
Top Features:
- SMA Connector, Female, Straight
- PCB Connector, Plate Edge Mount
- Gold Plating for environmental protection
- Operational up to 18GHz with low reflection
These connectors are suitable for various industries including Aerospace and Defense, Medical, Commercial Vehicle, Telecommunications, Data/Communications, and Industrial applications such as active and passive components, instrumentation, M2M Communications, and Vehicle Tracking System.
The electrical characteristics include an impedance of 50 ohms, frequency range of 0~6 GHz, VSWR of 1.3 max for Straight type and 1.5 max for R/A type, and more. The mechanical characteristics feature a coupling of 1/4-36 thread, contact retention of 15 in-lbs min, and durability of 500 cycles for Beryllium Copper Contact.
Environmental characteristics encompass a temperature range of -55C to +155C, vibration resistance as per MIL-STD-202 Meth.204, and corrosion resistance according to MIL-STD-202 Meth. 101.
Package Includes: 1 x SMA Female Straight Edge PCB Mount Connector
* Images are for illustration only; actual product may vary.
