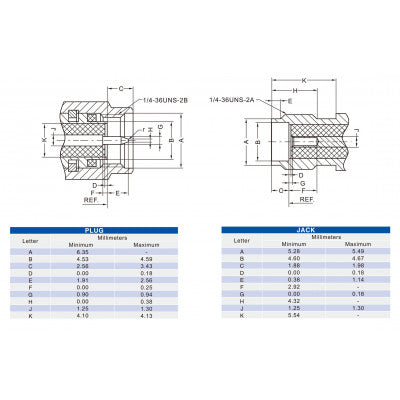

SMA Female Straight Connector Solder Type
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Appliance: Aerospace and Defense: Hand-held field Device and InstrumentationMedical: InstrumentationCommercial Vehicle: Bluetooth and GPSTelecommunications: Wireless Base Stations, Cellular Mobile SystemData/Communications: Wifi, WiMAXIndustrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Top Features:
- SMA Connector, Jack, Straight, 50ohm, solder
- Bulkhead-front Mount, Gold Plating, Brass
- Excellent electrical performance up to 18GHz with low reflection
- Thread type coupling mechanism ensures small loss and high security in compact design
- Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405; 750 V rms min. for RG316, RG402; 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405; 375 V rms max. for RG316, RG402; 170 V rms max. for RG178
- Center Contact Resistance: 6.0 m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)
- Mechanical Characteristics:
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability (mating): 500 cycles (For Beryllium Copper Contact)
- Environmental Characteristics:
- Temperature Range: -55C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 10
- Package Includes: 1 x SMA Female Straight Connector Solder Type
*Images are for illustration only; actual product may vary.
