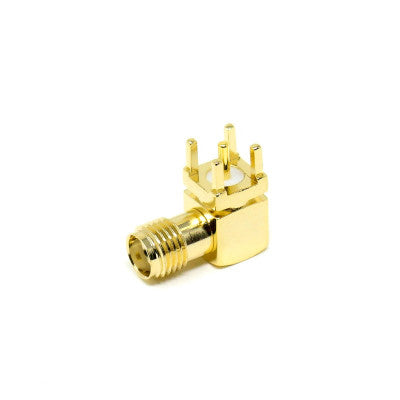

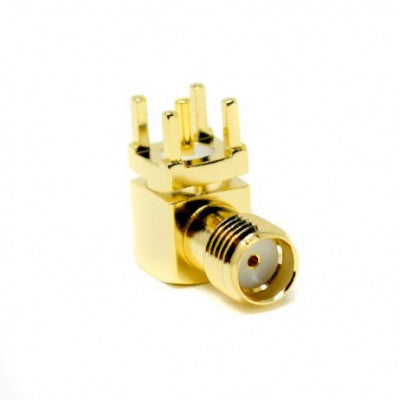

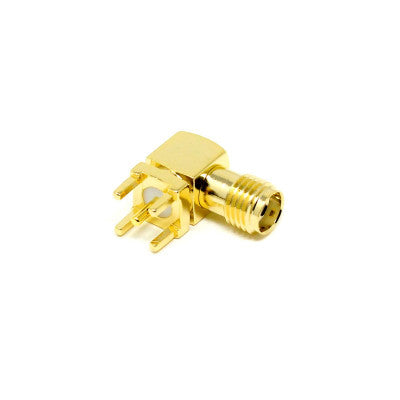

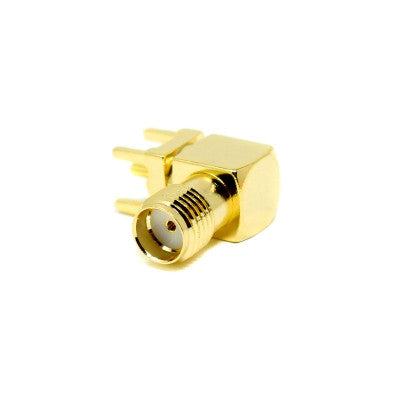

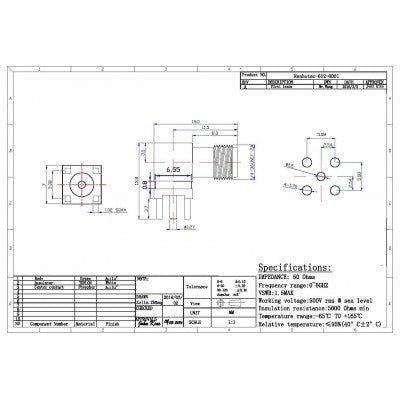

SMA Female Connector Right Angled Through-Hole for PCB Mount
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Brand: Lambdoid
- Orientation: Right Angle
- Gender: Female
- Mounting Type: PCB Mount
- Termination Style: Solder Type
- Mounting Feature: Through Hole
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: NA
Top Features:
- Through Hole, PCB Mount, Jack/female, Angled/90, 50
- Excellent electrical performance up to 18GHz with low reflection
- Thread type coupling mechanism ensures small loss and high security
- High Quality with 30 days 100% Money back guarantee
Main Application of SMA Connectors:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405; 750 V rms min. for RG316, RG402; 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405; 375 V rms max. for RG316, RG402; 170 V rms max. for RG178
- Center Contact Resistance: 6.0 m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)

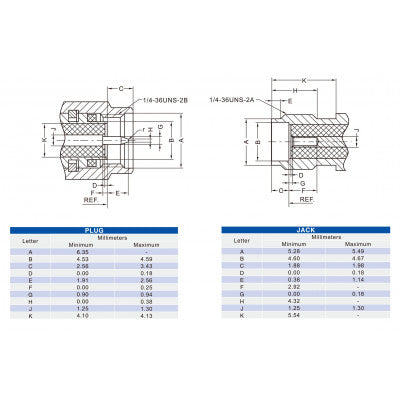

Mechanical Characteristics:
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability (mating): 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +165°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x SMA Female Connector Right Angled Through-Hole for PCB Mount
*Images are for illustration only; actual product may vary.*
