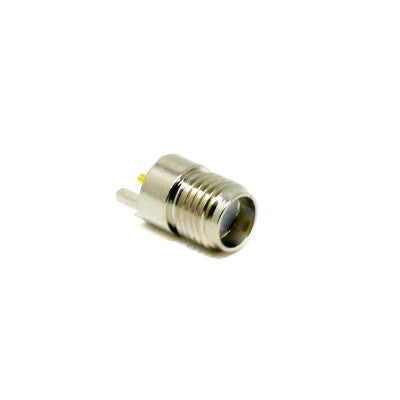

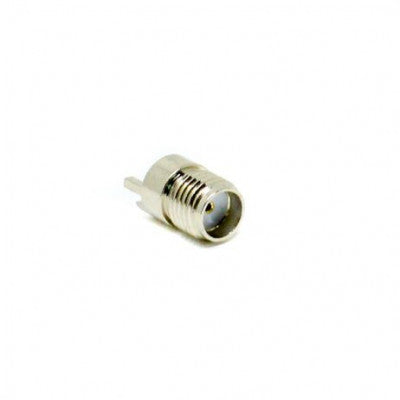

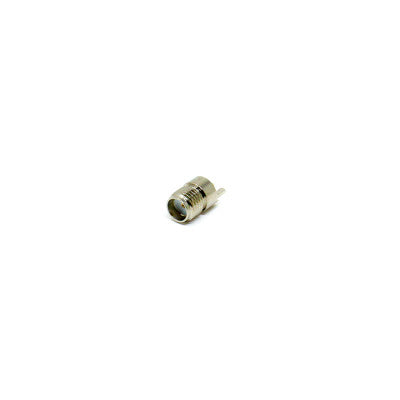

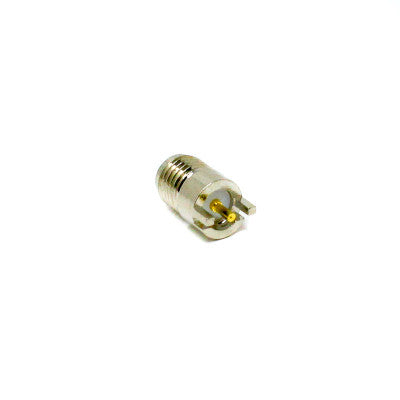

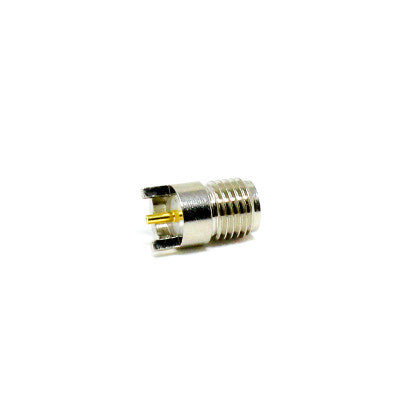

50 Ohm SMA Female Bulkhead Connector
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount / Panel Mount
- Termination Style: Solder Type
- Mounting Feature: Bulkhead / Edge Mount
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Silver Plating
- Impedance: 50 ohms
- Shield Termination: NA
Top Features:
- SMA Connector, 50 Ohm, Female
- Plate Edge Mount, Straight/180, Nickel Plating
- Excellent electrical performance up to 18GHz
- Low reflection with thread type coupling mechanism
These connectors are ideal for various applications including Aerospace and Defense, Medical, Commercial Vehicle, Telecommunications, Data/Communications, and Industrial sectors. They offer excellent electrical performance with low reflection up to 18GHz. The 50 ohm impedance and nickel plating ensure durability and environmental protection.

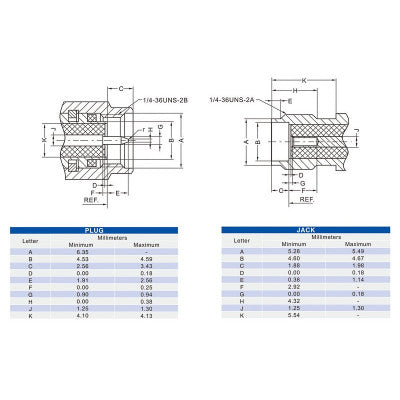

The electrical characteristics include an impedance of 50 ohm, frequency range of 0~6 GHz, and VSWR of 1.3 max for straight type and 1.5 max for R/A type. The mechanical characteristics feature a coupling of 1/4-36 thread, contact retention of 15 in-lbs min, and durability of 500 cycles for Beryllium Copper Contact. Environmental characteristics cover a temperature range of -55C to +155C, vibration resistance, and corrosion resistance.
The package includes 1 x SMA Female Bulkhead Connector 180 Degree Plate Edge Mount PCB Mount.
*Images are for illustration only; actual product may vary.*
