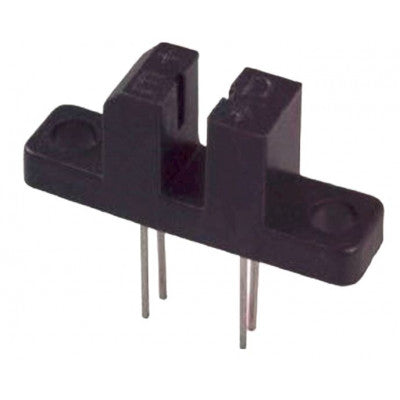

Slotted Opto Isolator Module - MOC-7811
The perfect module for monitoring interruptions in various applications
The MOC module is a slotted opto isolator module, also known as an encoder sensor or slotted coupler, and is widely used for applications that require monitoring for interruptions. It comes in a plastic moulding, housing both an emitter and a receiver section.

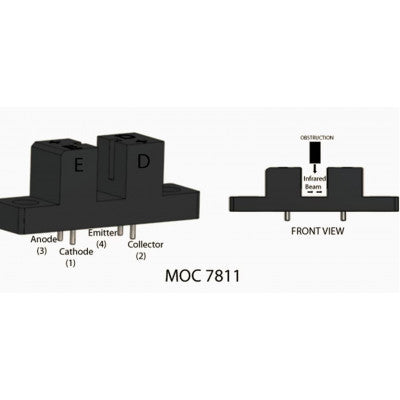

- Pin Configuration - Pin 1: Cathode
- Pin Configuration - Pin 2: Collector
- Pin Configuration - Pin 3: Anode
- Pin Configuration - Pin 4: Emitter
- Package Includes: 1 x Slotted Opto Isolator Module - MOC-7811
Some of its distinct uses involve acting as a switch to monitor on/off signals, determining the RPM of motors, functioning as smoke sensors and marking end stops/parking positions for motors in 3D printers and CNC machines, among others.
- Feature: Serves as a switch for monitoring signals
- Feature: Determines the RPM of motors
- Feature: Functions as smoke sensors
- Feature: Marks end stops/parking positions in 3D printers/CNC machines
- Feature: Monitors any interruption
- Specifications - Input Voltage: 5V
- Specifications - Current limit: 50mA
- Specifications - Transistor output(Vceo): 30V
