Sipeed MAIX AIoT Module
High-performance AI module designed to run at the edge with low power consumption.
- Brand: Seeed Studio
-
Features:
- MEMS microphone: 6 MSM261S4030H0 form an array
- Sensitivity: -26(dB,dBFS@1kHz 1Pa)
- Signal to noise ratio: 57dB(20kHz bandwidth, A-weighted)
- Size: 78.1*88.8mm
- Light: 12 LEDs form a ring light array
- Synchronous of two-lane 8 Bit(256level) color Set, 5Bit (32 level) brightness adjustment
- Connector: Support 2*5P 2.54mm header and 10P 0.5mm FPC connector
-
Specifications:
- SK9822 LEDs Viewing angle: 120 degrees
- Synchronous of two-lane Choose positive output or negative output RGB tri-colour LED out, 8 Bit(256level) colour Set, 5Bit (32 levels) brightness adjustment
- Current 20ma per colour, 60mA total at full brightness
- Sound Pressure Level: 140 dB SPL
- Sensitivity: -26(dB, dBFS @1kHz 1Pa)
- 6 MEMS microphones: MSM261S4030H0
- Clock frequency: 1.0-4.0Mhz(normal mode) 150-800khz(low power mode)
- Signal to noise ratio: 57 dB (20kHz bandwidth, A-weighted) THD2k
- Supply voltage: 3.3V +-0.2V
- Supply current: >750mA(Full brightness)
- Range of working temperature: -30 ~ 85C

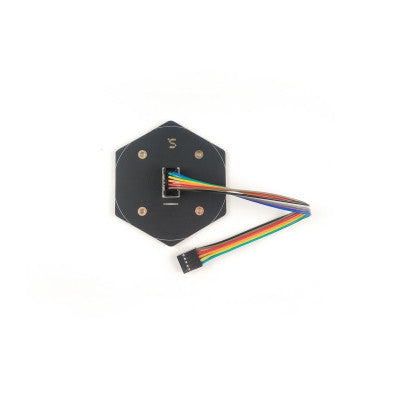

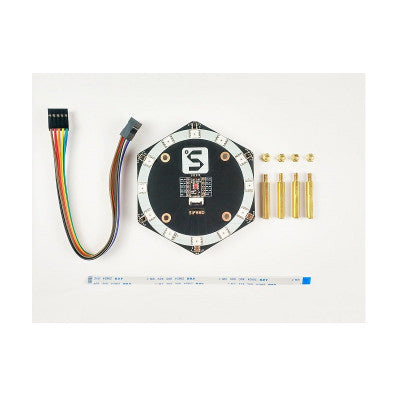

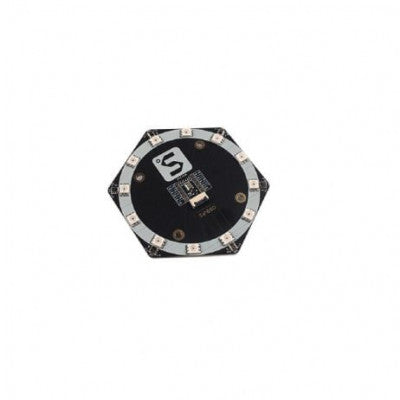

- Package Includes: 1 x Sipeed MAIX R6+1 Microphone Array
Sipeed MAIX is a purpose-built module designed to run AI at the edge, providing high performance in a small physical and power footprint. It enables the deployment of high-accuracy AI at the edge, making it suitable for embedding in IoT devices. Unlike Google edge TPU, MAIX acts as a master controller, offering a more cost-effective and low-power solution.
