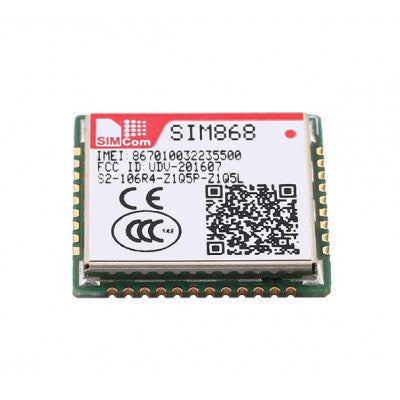

SIM868 Module
A complete Quad-Band GSM/GPRS module with GNSS technology
- Quad-band: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
- GPRS mobile station class: B
- Compliant to GSM phase 2/2+: Class 4 (2 W @ 850/900MHz), Class 1 (1 W @ 1800/1900MHz)
- Dimensions: 17.6*15.7*2.3mm
- Weight: 1.5g
- Control: AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
- Supply voltage range: 3.4 ~ 4.4V
- Low power consumption
- Operation temperature: -40 ~ 85
Top Features:
- Compact design with LCC and LGA pads
- Industry-standard interface
- GNSS function for satellite navigation
- Allows seamless tracking of variable assets
The SIM868 module is designed to save time and costs for customers developing GNSS enabled applications. With its industry-standard interface and GNSS function, it enables seamless tracking of assets at any location with signal coverage.
Interfaces:
- 77 SMT pins including:
- SIM Card Interfaces - SIM card 3V/1.8V
- Analog audio interface
- RTC GNSS backup
- I2C interface
- USB interface
- Serial interface
- SD
- GPIO
- ADC
- GSM Antenna pad
- GNSS Antenna pad
- Bluetooth Antenna pad
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
