SIM808 Module GSM GPRS GPS Development Board with GPS Antenna
A versatile integrated module for 2G, 3G, 4G SIM Card support
- Power supply: 3.4V ~ 4.4V
- GPS Antenna freq: 1575.42 MHz (2.7~5V)
- GPS Antenna cable length: 3M
- Power saving: Typical power consumption in sleep mode is 1mA (BS-PA-MFRMS=9, GPS engine is powered down)
- Charging: Supports charging control for Li-Ion battery
- Frequency bands: SIM808 Quad-band: GSM 850, EGSM 900, DCS 1800, PCS 1900. SIM808 can search the 4 frequency bands automatically. The frequency bands also can be set by AT command AT+CBAND
- Normal operation: -40 ~ +85
- Storage temperature: -45~ +90
- Product dimensions (mm): 76 x 50 x 9
- Product weight (g): 35

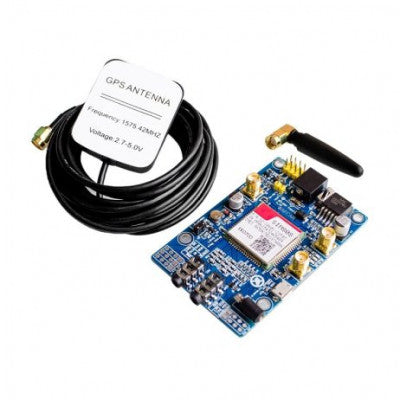

- Package Includes: 1 x SIM808 Module with small Antenna, 1 x GPS Antenna
Features:
- Easy to use
- Supplied by 5-26V power
- Computer debugging via USB-TTL
- Portable with two antenna SMA ports
The SIM808 module is a versatile integrated module that combines GSM, GPRS, and GPS functionalities into a single board. It provides basic cellular communication functionalities, internet access, and GPS positioning. The module is often used in tracking systems, vehicle monitoring, and location-based services.
When working with the SIM808 module, it's essential to refer to the module's datasheet and documentation for detailed technical specifications and integration guidelines.
