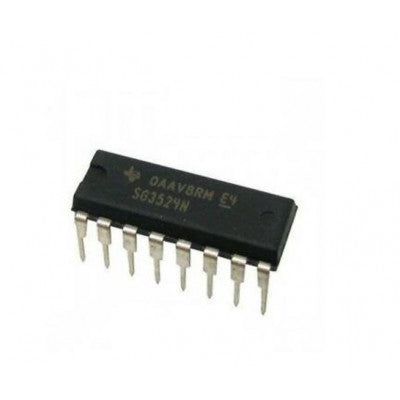

SG3524 PWM Power Control Circuitry
Incorporates all functions for regulating power supply, inverter, or switching regulator.
- Part number: SG3524
- Topology: Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
- Control method: Voltage
- VCC(Min) (V): 8
- VCC(Max) (V): 40
- Frequency(Max) (kHz): 722
- UVLO thresholds on/off (V):
- Duty cycle(Max) (%): 45
- Gate drive (Typ) (A): 0.05
- Features: Adjustable Switching Frequency, Error Amplifier, Multi-topology
- Rating: Refer Data Sheet
- Operating temperature range (°C): 0 to 70
- Package Group: PDIP|16
- Package size: mm2:W x L (PKG): 16PDIP: 181 mm2: 9.4 x 19.3 (PDIP|16)
Top Features:
- Complete PWM Power-Control Circuitry
- Uncommitted Outputs for Various Applications
- Low Standby Current: 8 mA (TYP)
SG3524 incorporates all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. It can be used as the control element for high-power-output applications. SG3524 was designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixed-frequency, pulse-width modulation (PWM) techniques. The complementary output allows either single-ended or push-pull application. Each device includes an on-chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current-limiting and shutdown circuitry.
