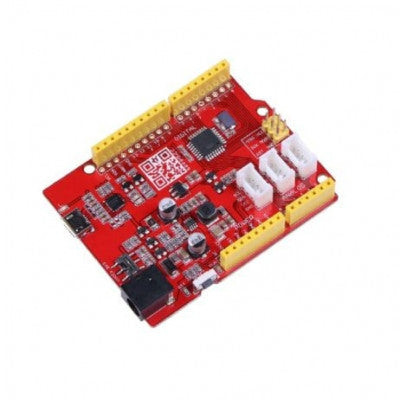

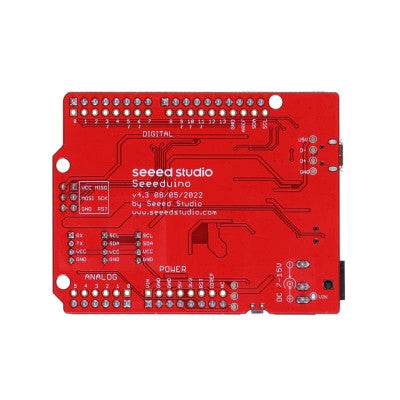

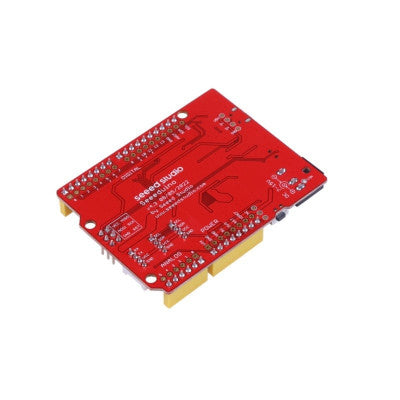

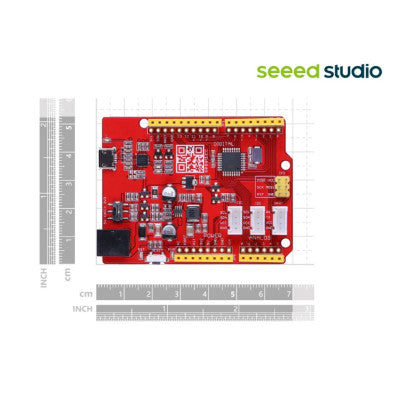

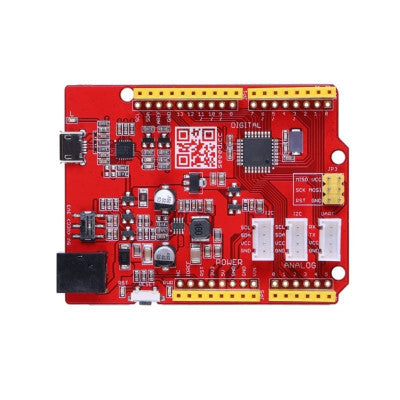

Seeeduino V4.3 (ATMega328P) Development Board
An Arduino-compatible board based on ATmga328P MCU with unique features.
- Microcontroller: ATmega328P
- Bootloader: Arduino UNO
- Digital I/O Pins: 14 (6 PWM outputs)
- Analog Inputs: 6
- ISP Header: Yes
- Compatibility: Arduino UNO-R3 Shield
- Programming: Micro USB
- Power Supply: Micro USB or DC Jack (7-15V)
Top Features:
- ATmega328P microcontroller
- Arduino UNO bootloader
- 14 Digital I/O Pins (6 PWM outputs)
- Micro USB programming and power supply
This Seeeduino V4.3 board is designed to be stable and user-friendly, featuring a special red design for the Seeeduino family. It is equipped with an ATMEGA16U2 as a UART-to-USB converter, allowing it to function like an FTDI chip. The board supports programming via a micro-USB cable and can be powered through a DC Jack input (7-15V range).
The system supply voltage can be easily selected between 3.3V and 5V using a switch, providing flexibility and power-saving options. Additionally, the board includes 3 on-board Grove connectors, eliminating the need for jumpers or soldering during prototyping.
With over 300 Grove modules available, connecting and experimenting with different applications becomes hassle-free. The open hardware design, coupled with open-source software, enhances the versatility of this development board.
Explore various Arduino projects in the community and utilize the step-by-step example codes to kickstart your projects with the Seeeduino V4.3. For detailed comparisons with other Arduino boards, refer to the Arduino Boards Selection Guide.
