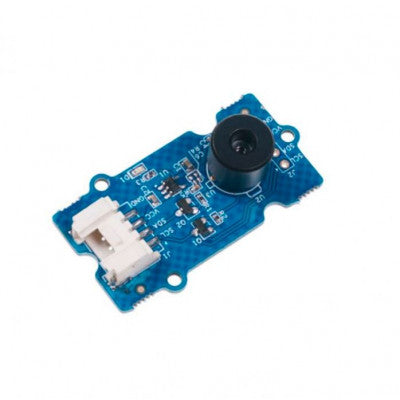

All-New SeeedStudio Grove Thermal Imaging Camera Module
An infrared thermometer module based on the MLX90641 sensor for accurate temperature detection.
- Operating Voltage (VDC): 5
- Operating Current (A): 0.018
- Interface: I2C
- Sensing Temperature (°): -40 to 85
- Measuring Temperature Range (°): -70 to 380
- Measuring Accuracy: 0.2
- Lens Viewing Angle (FOV): 35
- Length (mm): 42
Top Features:
- Single-point medical-grade infrared temperature sensor (MLX90614)
- Wide temperature measurement range (-70~380)
- I2C Grove interface for easy communication with an MCU
This Thermal Imaging Camera Module from SeeedStudio in the Grove ecosystem series can detect object temperatures with high accuracy. It uses the I2C protocol for data retrieval and MCU communication. The sensor has a field of view (FOV) of 35 and can measure temperatures ranging from -70°C to 380°C. The operating temperature range is -40°C to 85°C, ensuring reliable performance in various conditions.
The module can also function as an infrared thermometer, providing precise temperature readings for a wide range of applications. With a weight of only 10g and compact dimensions (42mm x 24mm x 5mm), this module is portable and versatile for different projects.
