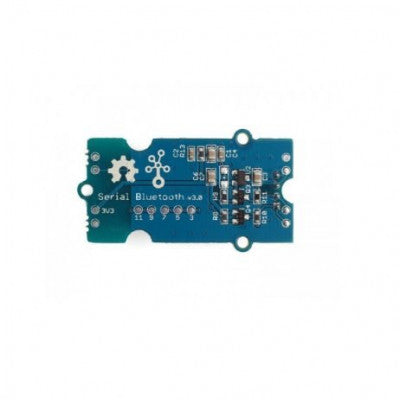

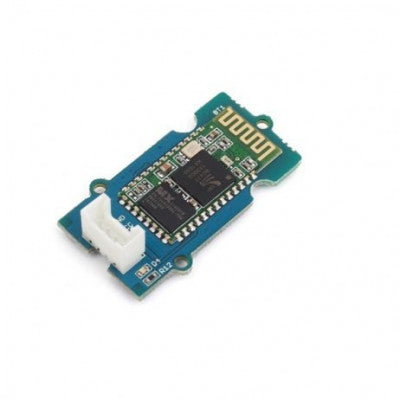

Grove Serial Bluetooth
An easy-to-use module for transparent wireless serial connection setup.
- Operating Voltage: 5.0VDC
- Data Rate: 2Mbps
- RF Transmit Power (Max): +4dBm
- Sensitivity: -80dBm

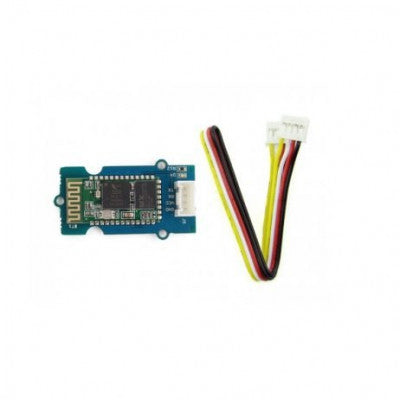

- Package Includes: 1 x Grove Serial Bluetooth v3.0 Module
Top Features:
- 2Mbps Data Rate
- +4dBm RF Transmit Power
- -80dBm Sensitivity
- Bluetooth V2.0+EDR
Grove Serial Bluetooth is a module designed for transparent wireless serial connection setup. It is compatible with the existing Grove Base Shield and features fully qualified Bluetooth V2.0+EDR with 2Mbps Modulation. The module uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and AFH for Adaptive Frequency Hopping Feature. With a small footprint of 12.7mm x 27mm, it aims to simplify your overall design/development cycle.
Hope it will simplify your overall design/development cycle.
* Images are for illustration only; actual product may vary.
