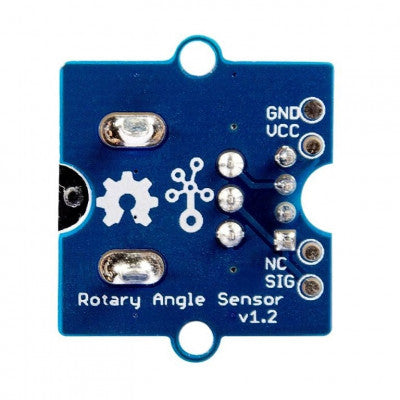

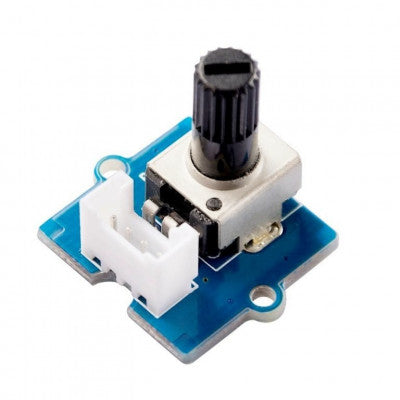

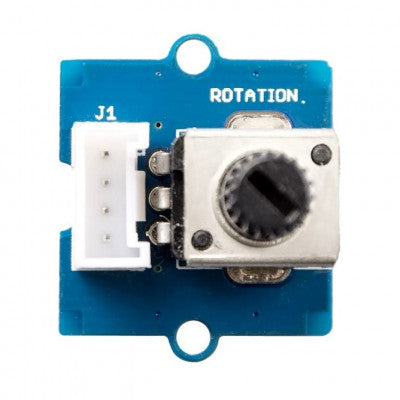

Grove Rotary Angle Sensor Module
Produce analog output values between 0V and Vcc with ease.
- Operating Voltage (VDC): 4.75 ~ 5.25
- Rotational Degree: 0 to 300
- Length (mm): 25
- Width (mm): 20
- Height (mm): 30
- Mounting hole diameter (mm): 2
- Weight (gm): 5
Top Features:
- Angular range: 300
- Output range: 0 to Vcc
- Grove compatible interface
- Easy to use
Do you need a sensor to produce analog output values between zero volt and Vcc? The Grove Rotary Angle Sensor module is designed for this purpose. It features an inbuilt potentiometer that allows you to generate a wide range of analog output values between 0 and Vcc (5V DC with Seeeduino) on its D1 connector. The sensor has an angular range of 300 degrees with a linear change in value and a resistance value of 10k, making it perfect for use with Arduino. It is a Grove base module with a compatible interface with the Grove system.
For all Grove users, especially beginners, Seeed Studio provides guidance PDF documents. Make sure to download and read through the Preface, Getting Started, and Introduction to Grove before using the product. This sensor is suitable not only for Grove users but also for all electronic enthusiasts. Don't wait, buy now!
Package Includes: 1 x Grove Rotary Angle Sensor Module
* Images are for illustration only; actual product may vary.
