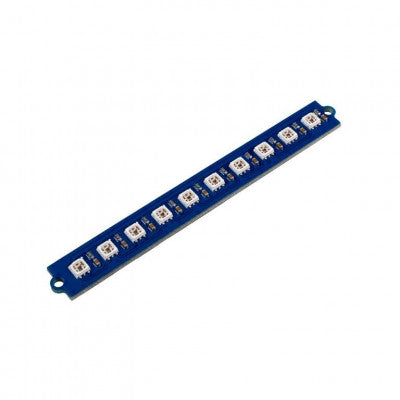

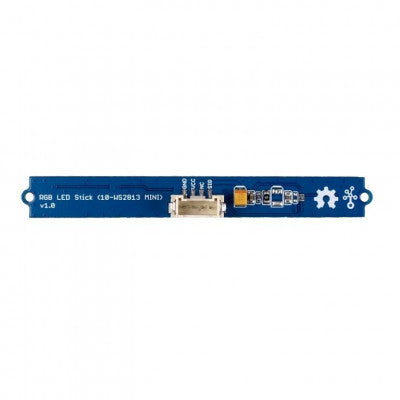

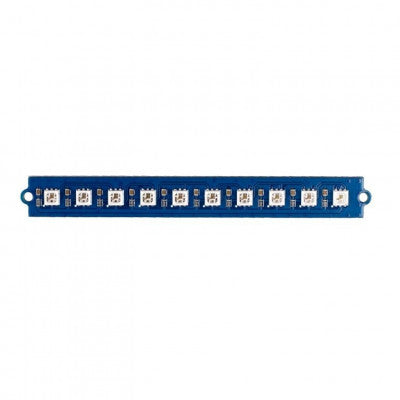

Grove RGB LED Stick (10 WS2813 Mini) v1.0
Experience numerous light effects with this colorful LED strip!
- Operating Voltage (VDC): 3.3 ~ 5
- Operating Temperature Range (C): -25 to 85
- Storage condition: -40 to 105
- RGB Channel Constant Current: 16 mA
- Length (mm): 83
- Width (mm): 10
- Height (mm): 10
- Mounting hole diameter (mm): 2
- Weight (gm): 4
Top Features:
- 3535 LED components integrated in WS2813B IC
- Intelligent reverse-connection protection
- Refresh frequency: up to 2KHz
- Color: Red, green, and blue
This strip is an integration of 10 full-color RGB LEDs with only one signal pin to control all 10 LEDs easily. The WS2813 Support Signal Break-point Continuous Transmission allows you to continue using other LEDs even if one is broken. All LEDs are WS2813 Mini, providing intelligent control and high cost-effectiveness.
Check out the VIDEOS section for the Sparkling LED Pig project using Grove RGB LED Ring. Create your light effects and Christmas light shows with this RGB LED Stick. Illuminate toys, photo frames, wall paintings, and more with your imaginative ideas!
For Grove users and electronics enthusiasts, Seeed Studio offers guidance PDF documents. Download and read through Preface Getting Started and Introduction to Grove before using the product.
Images are for illustration only; actual product may vary.
