Grove Recorder V3.0
The latest and best version with upgraded MCU and longer recording time.
- Working Voltage: 3.3V
- Working Current (@5V, 25°C): Standby: 25-30mA, Recording: 29-35mA, Playing: 110-150mA
- Working Current (@3.3V, 25°C): Standby: 23-25mA, Recording: 25-30mA, Playing: 70-150mA
- Working Temperature: 0~85°C
- Size: 40x20mm
- Weight: 31.5g

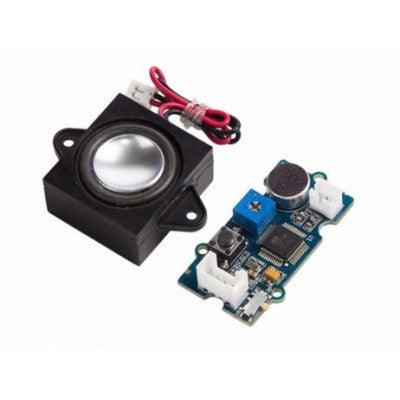

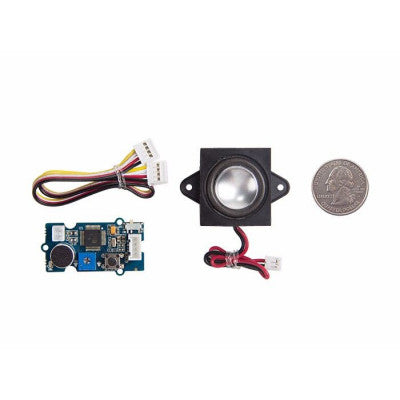

- Package Includes: 1 x SeeedStudio Grove Recorder V3.0 Module, 1 x JST cable
Top Features:
- Very long record time, up to 83s
- Built-in button for easy operation
- Integrated record and playback button
- Built-in LED indicator
This is the latest version of the Grove Recorder, featuring an upgraded MCU to ISD9160FI and 2Mbytes flash for extended recording time of up to 83 seconds, a significant improvement from the previous 12-second limit. The integrated record and playback button simplifies operation, allowing you to start recording by holding the button for 2 seconds and playback by a quick push.

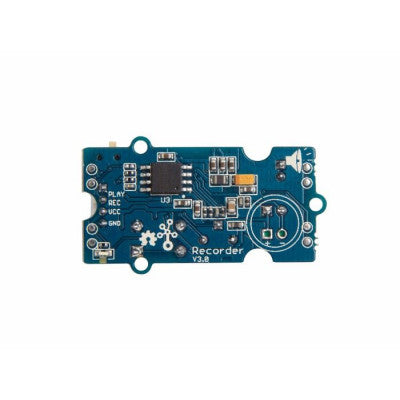

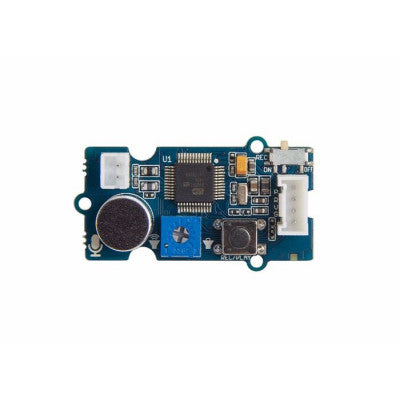

The hardware overview includes a Speaker Connector JST2.0, Microphone, Voice Control Button, LED Indicator, Grove Connector, and REC Switch. The module can be used stand-alone or controlled by an MCU.
