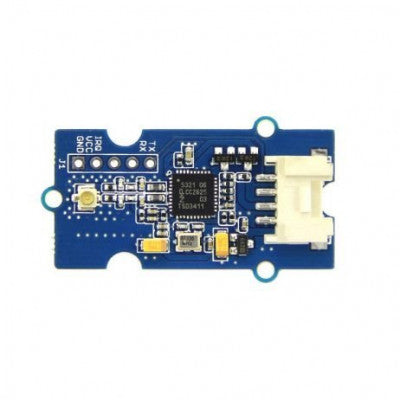

Grove Near Field Communication (NFC)
Highly integrated transceiver module for contactless communication at 13.56MHz.
- Working Voltage: 3.3V
- Support host interface: I2C, UART(default)
- Serve for: contactless communication at 13.56MHz
- Support: ISO14443 Type A and Type B protocols
Features:
- Working Voltage: 3.3V
- Support host interface: I2C, UART(default)
- Serve for contactless communication at 13.56MHz
- Support ISO14443 Type A and Type B protocols
You can read and write a 13.56MHz tag with this module or implement point to point data exchange with two NFCs. Grove NFC is designed to use I2C or UART communication protocols, and UART is the default mode.

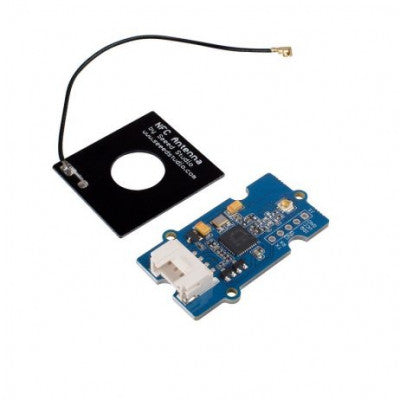

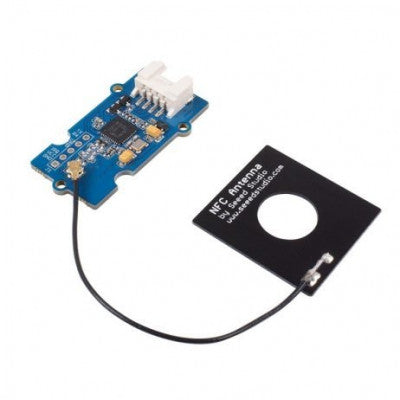

Package Includes:
- 1 x Grove NFC
- 1 x NFC Antenna
- 1 x IPX connect wire 120mm
- 1 x 24AWG Grove Cable 4P-4P-2.0-200mm
Specifications:
- Working Voltage: 3.3V
- Working Current: Static Mode: 73mA, Write/Read Mode: 83mA
- Support host interface: I2C, UART(default)
- Dimensions: 25.43mm x 20.35mm
- Weight (g): 12
* Images are for illustration only; actual product may vary.
