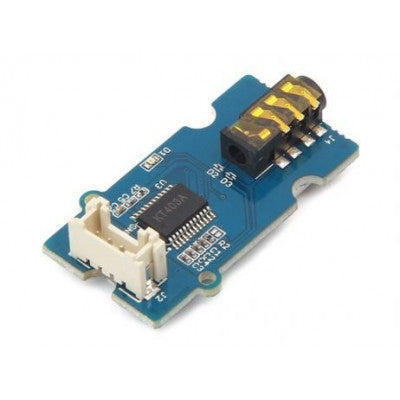

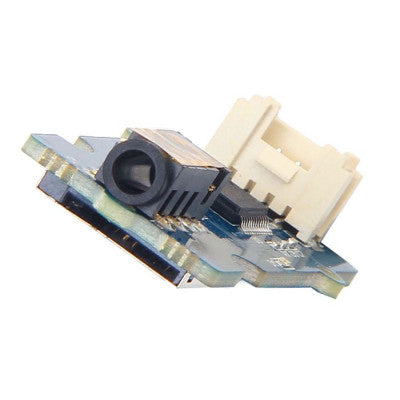

Grove MP3 v2.0
A tiny-sized audio module supporting various audio file operations
- Input: 5V(DC)
- Operating current (without signal output state): less than 15 mA
- Operating current (with signal output state): less than 40 mA
- Chip: KT403A
- Chip LDO output voltage: 3.3 V
- Chip output current: 100 mA(at Max.)
- File formats supported: MP3, WAV, WMA
- Maximum memory supported for SD card: 32 GB
- Sampled rate: 8/11.025/12/16/22.05/24/32/44.1/48 (kHz)
Top Features:
- General operations on audio files

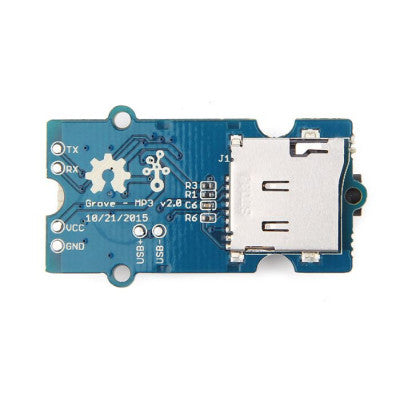

- Micro-SD slot and 3.5mm audio jack
- Support for various audio formats and file systems
- 24-bit DAC output with 90 dB dynamic range
Grove MP3 v2.0 is a compact audio module supporting MP3, WAV, and WMV formats. It allows random music playing and specific file selection. The module operates with serial communication and supports FAT16 and FAT32 file systems. Equipped with a Grove UART interface, a 3.5 mm audio jack, and a micro-SD slot, it offers versatility for audio applications.
Add some noise to your silent applications with the Grove MP3 v2.0 module.

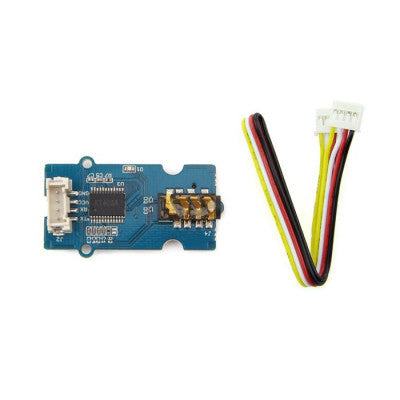

Package Includes: 1 x SeeedStudio Grove MP3 v2.0, 1 x JST cable
* Images are for illustration only; actual product may vary.
