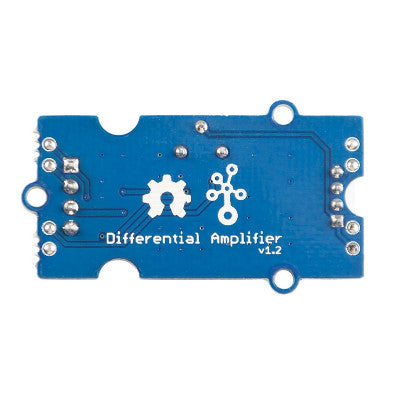

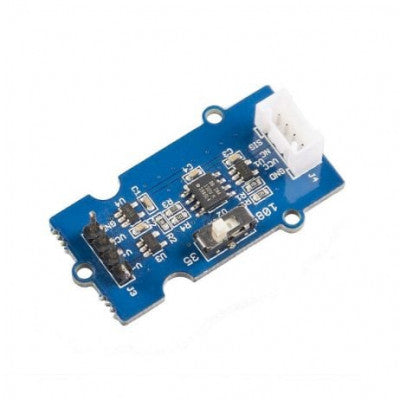

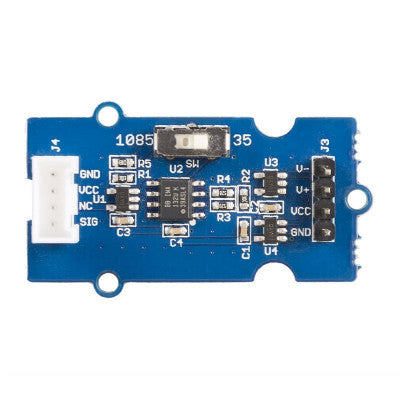

SeeedStudio Grove Differential Amplifier
A convenient solution for precise differential-input amplification.
- Operating Voltage: 5.5
- Input Voltage: 0.1/(Vcc-0.8)/Gain
- Output voltage: Vcc-0.80
- Gain: 35/1085
- Package Includes: 1 x SeeedStudio Grove Differential Amplifier
Features:
- High amplifying precision
- Selectable scale factor
- Conveniently read by Arduino
- Strong input protection: ±40V
Setting up an amplifier IC on the breadboard can be troublesome and repetitive. This Grove module eliminates the need for such setup by integrating the entire operating circuit. It is specifically designed for precise differential-input amplification. Simply input the differential signals of your sensor to this module through the male pins, and your Arduino will receive a precisely amplified output from the Grove interface. The gain scale factor is selectable, allowing for either 35 times or 1085 times amplification via a switch on the board.
Application:
- Data acquisition
- Battery operated systems
- Pressure and temperature bridge amplifiers
- General-purpose instrumentation
Images are for illustration only; actual product may vary.
