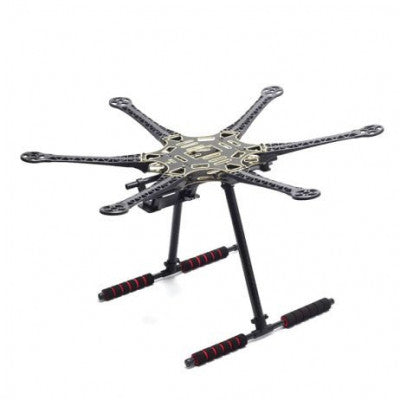

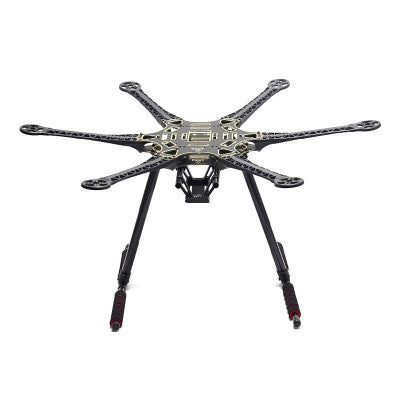

S550 Hexacopter Frame
A strong and lightweight hexacopter frame with advanced features
- Model: S500
- Board: PCB version
- Color: Black
- Wheelbase (mm): 550mm
- Arm Size (mm): 235x42
- Motor Mount Bolt Holes: 16, 19, and 25mm
- Landing Gear: Carbon Fiber
- Landing Gear Height (mm): ~250
- Landing Gear Color: Black
- Landing Gear Weight (gm): 100 (both)
- Total Weight (g): 760
Top Features:
- Strong & smooth engineering material
- Easy to assemble and disassemble
- Tough and durable frame
- Pre-threaded brass sleeves for easy mounting

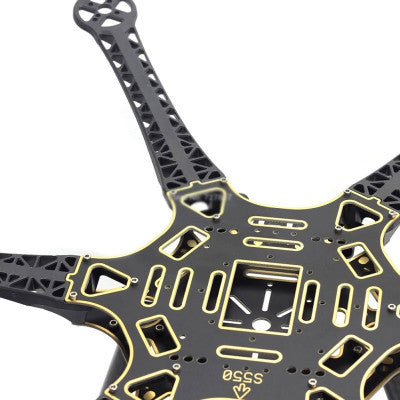

This Hexacopter Frame employs 6 arms for increased power and stability compared to quadcopters. The S550 is designed with a PCB for easy ESC soldering, making the build process fast and clean. It is highly flexible for mounting various components like the flight controller and battery.
The frame is capable of carrying larger payloads, making it ideal for camera systems and other electronic components. With pre-threaded brass sleeves and a universal motor mount design, the assembly is quick and convenient. The frame also features mounting tabs for accessories like cameras.

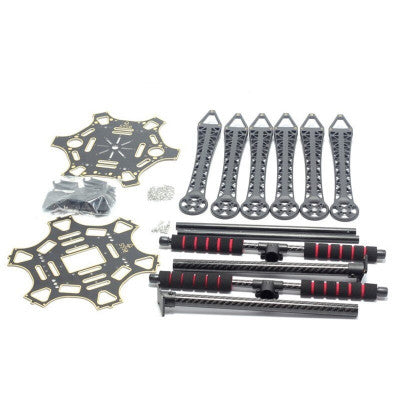

Package Includes:
- 1 x S550 Quadcopter Frame (Top and Bottom) with PCB soldered centerboard
- 6 x S550 arms
- Landing gear setup & Accessories set (as shown in the image)
*Images are for illustration only; actual product may vary.
