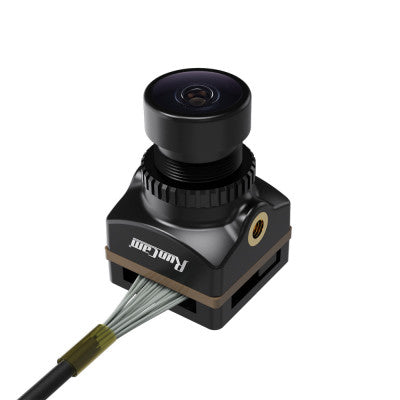

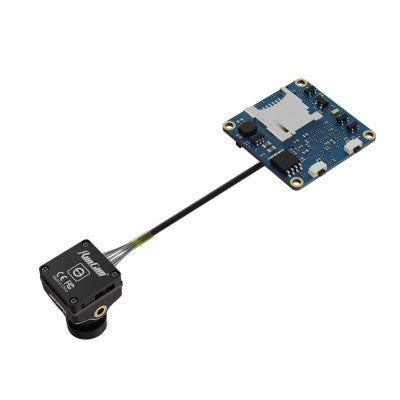

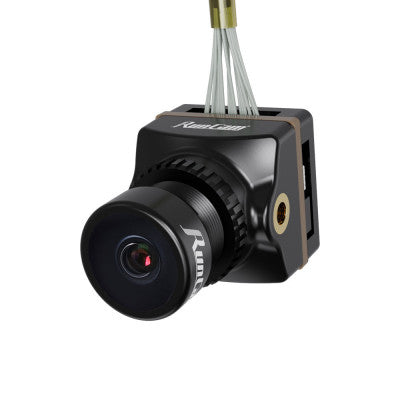

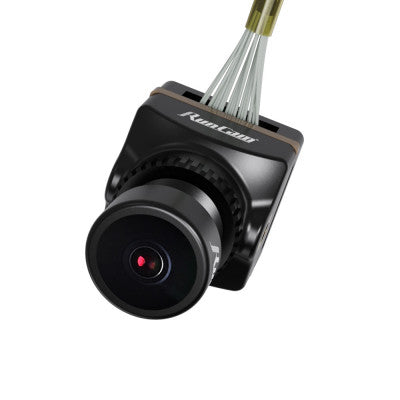

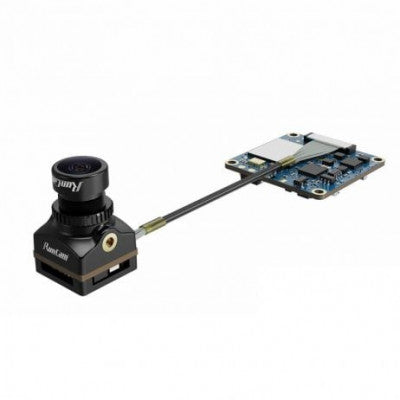

Runcam Split 4 HD Camera
An HD camera designed for tiny whoops or toothpick micro drones, capable of recording 4K videos.
- Brand: Runcam
- Model: Split 4
- Working Current: MAX 450mA @5V
- Image Sensor: SONY 13MP
- Resolution: 4K@30fps/2.7K@60fps/2.7K@50fps/1080P@60fps
- File Format: MP4
- Interface: UART
- Micro-SD Card Slot: 128G (Recommend U3)
Top Features:
- 4K 30FPS & 2.7K 60 FPS recording
- Low latency (average 55MS)
- 5-20V wide voltage range
- FPV aspect ratio 16:9/4:3 switchable
The Runcam Split 4 is a compact camera suitable for the smallest 4K FPV drones, such as the 65mm whoop. It offers power-off protection for video files and UART control for easy operation. The camera has a Field of View (FOV) of 140° and supports TV Mode switching between NTSC (720x480) and PAL (720x576).
With a power input range of DC 5-20V, it is important to note that direct power supply from the battery may cause surges and damage the camera. The lens module size is 14x14mm, with a mounting hole distance of 25.5x25.5mm and a PCB size of 29x29mm, allowing for easy installation.
The package includes: 1 x Runcam Split 4 Camera, 1 x 14 to 19 bracket, 1 x 3PIN Cable, 1 x Set of M2 screws, and 1 x Manual.
Images are for illustration only; actual product may vary.
