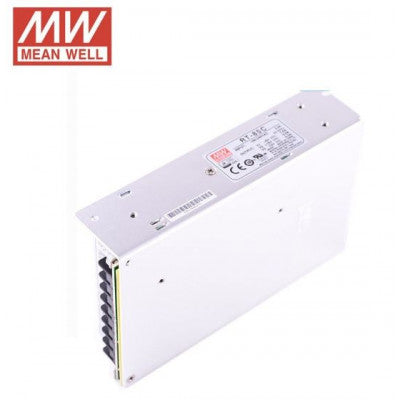

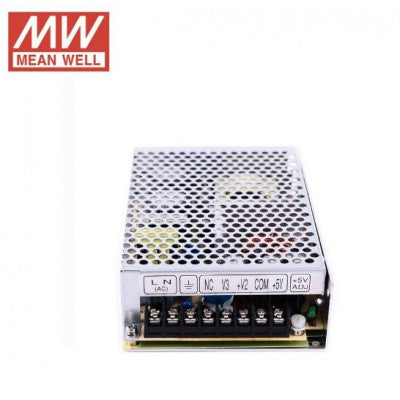

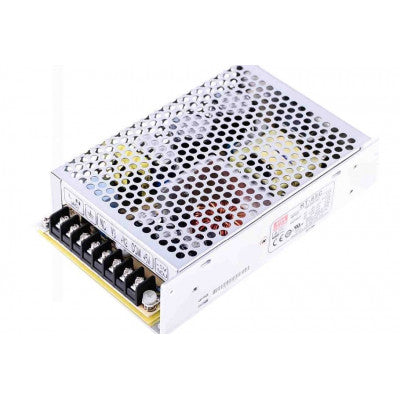

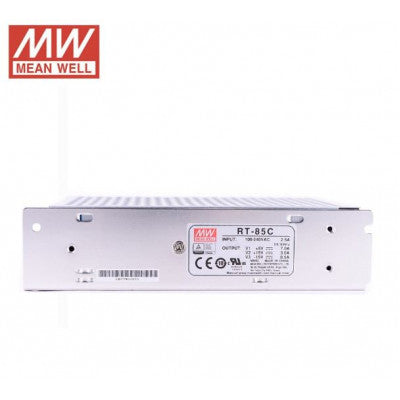

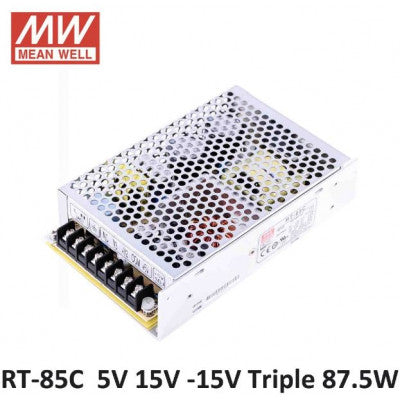

MEAN WELL Triple Output Enclosed Power Supply RT-85C
Reliable triple output power supply with 87.5W output power and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 15 VDC
- Output Voltage-Channel 3: -15 VDC
- Output Current-Channel 1: 7A
- Output Current-Channel 2: 3A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3
- Output Power: 87.5 W
- Type: Enclosed Type
- Features: Standard
- Series: RT (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input
- Short circuit, overload, and overvoltage protections
- LED indicator for power on
- High efficiency and reliability
The MEAN WELL RT-85C is a reliable triple output power supply with an output power of 87.5W. It features an enclosed type design and comes with a 3-year warranty. The power supply has three output channels with different voltage and current ratings, making it suitable for various applications.
It has a wide input voltage range of 88 VAC to 264 VAC and 125 VDC to 373 VDC, allowing flexibility in usage. The RT-85C is designed for high reliability, with features such as short circuit, overload, and overvoltage protections. It also has a high operating temperature of up to 70°C, making it suitable for challenging environments.
- Manufacturer: MEAN WELL
- Input Current: 1.5A/230VAC, 2.5A/115VAC
- Operating Temperature: -25 to +70 DEG CEL
- Voltage Adjustable Range: 4.75 to 5.5V
- Frequency: 47 to 63Hz
- Protection: Short circuit, overload, overvoltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 159 mm
- Width: 97 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-85
- Model: RT-85C
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 600 g
Related Documents:
- RT-85 Datasheet
- RT-85C Test Report
- CE Certificate (RT-85)
- UL Certificate (RT-85)
- CB Certificate (RT-85)
- TUV Certificate (RT-85)
- EMC Certificate (RT-85)
*Images are for illustration only; actual product may vary.
