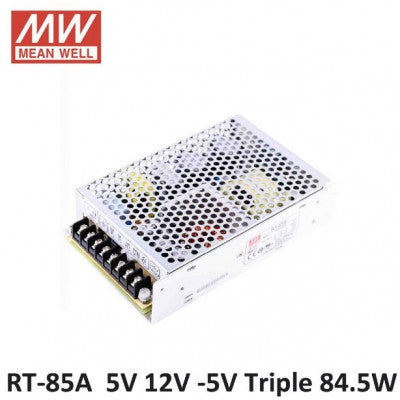

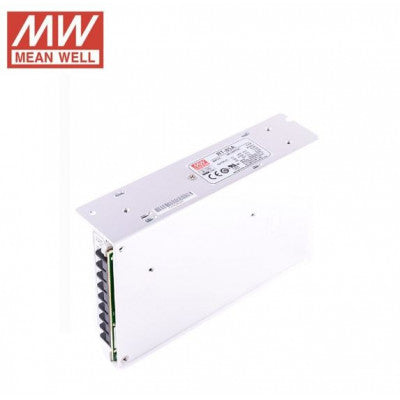

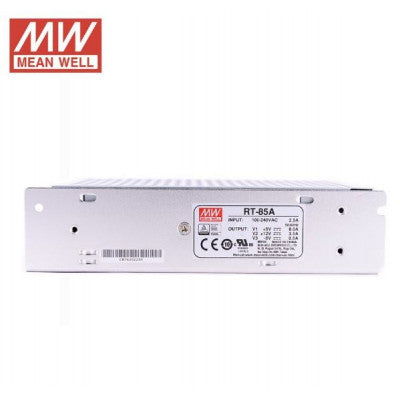

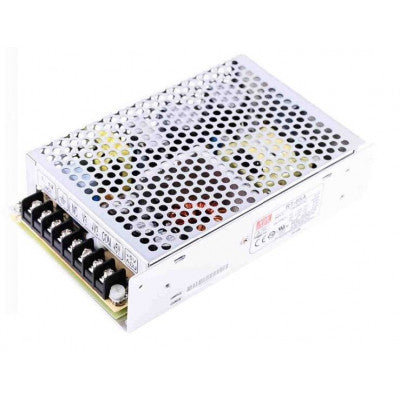

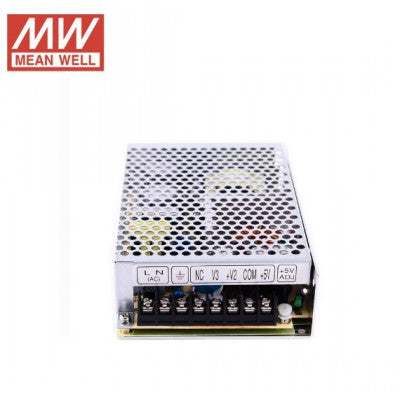

MEAN WELL Triple Output Enclosed Power Supply RT-85A
Reliable triple output power supply with 84.5W output power
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Voltage-Channel 3: -5 VDC
- Output Current-Channel 1: 8A
- Output Current-Channel 2: 3.5A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3 Output
- Output Power: 84.5 W
- Type: Enclosed Type
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- Cooling by free air convection
- LED indicator for power on
The MEAN WELL RT-85A is a reliable triple output power supply with a total output power of 84.5W. It features an enclosed type design and comes with a 3-year warranty. The input voltage ranges from 88 VAC to 264 VAC and 125 VDC to 373 VDC.
- Manufacturer: MEAN WELL
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
- Input Current: 1.5A/230VAC, 2.5A/115VAC
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Protection: Short circuit / Overload / Over voltage
- Industry: Commercial
The RT-85A power supply is designed for high efficiency, long life, and high reliability. It has undergone a 100% full load burn-in test and can withstand 300VAC surge input for 5 seconds. With a high operating temperature of up to 70°C and a 3-year warranty, this power supply is ideal for various applications.
- Length: 159 mm
- Width: 97 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-85
- Model: RT-85A
- Brand: MEAN WELL
- Unit Weight: 600 g
For more detailed information, you can refer to the related documents such as the RT-85 Datasheet, RT-85A Test Report, CE Certificate, UL Certificate, CB Certificate, TUV Certificate, and EMC Certificate.
* Images are for illustration only; actual product may vary.
