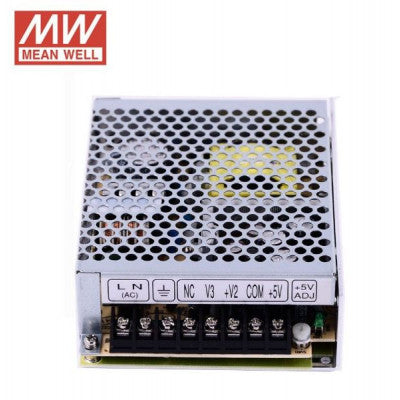

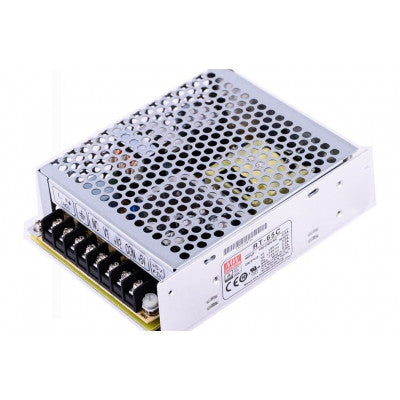

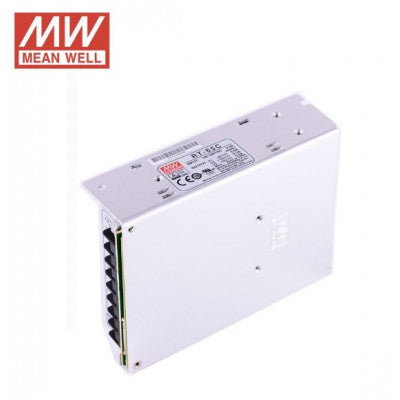

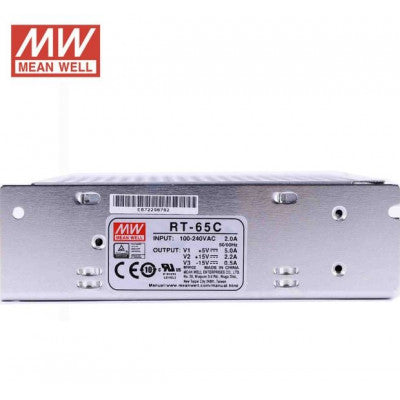

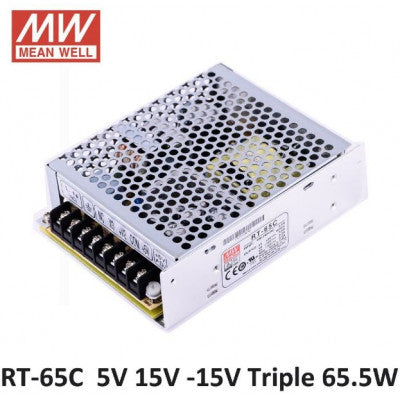

MEAN WELL Triple Output Enclosed Power Supply RT-65C
Reliable triple output power supply with 65.5W output power
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 15 VDC
- Output Voltage-Channel 3: -15 VDC
- Output Current-Channel 1: 5A
- Output Current-Channel 2: 2.2A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3 Output
- Output Power: 65.5 W
- Type: Enclosed Type
- Features: Standard
- Series: RT (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- LED indicator for power on
- High efficiency, long life, and high reliability
The MEAN WELL RT-65C is a reliable triple output power supply with an output power of 65.5W. It features an enclosed type design and comes with a 3-year warranty. The input voltage ranges from 88 VAC to 264 VAC and 125 VDC to 373 VDC.
Specifications:
- Manufacturer: MEAN WELL
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 15 VDC
- Output Voltage-Channel 3: -15 VDC
- Number of Outputs: 3 Output
- Output Power: 65.5 W
- Open Frame/Enclosed: Enclosed
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
- Input Current: 1.2A/230VAC, 2A/115VAC
- Output Current-Channel 1: 5 A
- Output Current-Channel 2: 2.2 A
- Output Current-Channel 3: 0.5 A
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Protection: Short circuit / Overload / Over voltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 129 mm
- Width: 98 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-65
- Model: RT-65C
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 440 g
