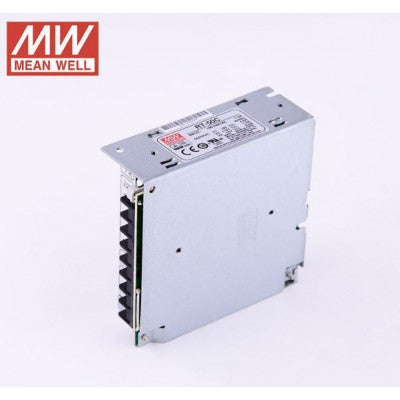

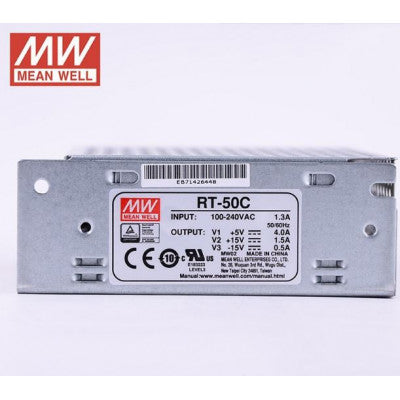

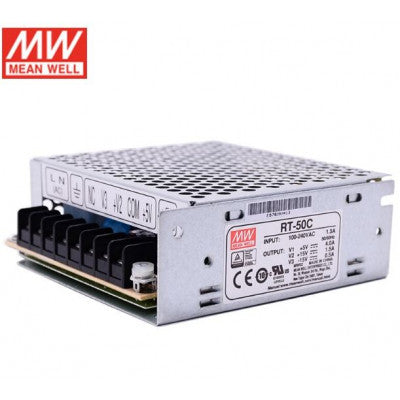

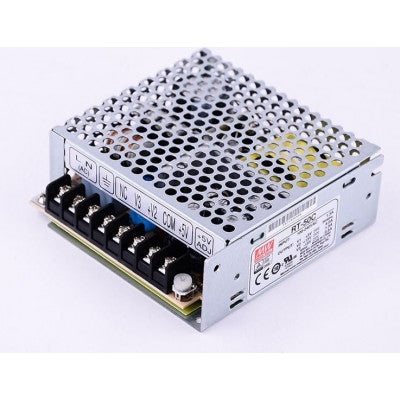

MEAN WELL Triple Output Enclosed Power Supply RT-50C
Reliable 50W power supply with 3 output channels and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 15 VDC
- Output Voltage-Channel 3: -15 VDC
- Output Current-Channel 1: 4A
- Output Current-Channel 2: 1.5A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3
- Output Power: 50 W
- Type: Enclosed Type
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- Cooling by free air convection
- LED indicator for power on
The MEAN WELL RT-50C is a reliable enclosed power supply with three output channels. It features a 3-year warranty and is designed for standard use. The power supply has an input voltage range of 88 VAC to 264 VAC and 125 VDC to 373 VDC.
It offers high efficiency, long life, and high reliability, making it suitable for various commercial applications. The RT-50C is equipped with protections against short circuit, overload, and overvoltage. It also features cooling by free air convection and an LED indicator for power on.
- Manufacturer: MEAN WELL
- Operating Temperature: -25 TO +70 DEG CEL.
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Industry: Commercial
- Mounting Style: Chassis
- Length: 99 mm
- Width: 97 mm
- Height: 36 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
The MEAN WELL RT-50C power supply is compliant with safety standards UL62368-1 and TUV EN62368-1. It has a compact design with dimensions of 99mm x 97mm x 36mm and a weight of 410g. The power supply is designed for high reliability and comes with various certifications, including CE, UL, CB, TUV, and EMC.
Related Documents:
- RT-50 Datasheet
- RT-50C Test Report
- CE Certificate (RT-50)
- UL Certificate (RT-50)
- CB Certificate (RT-50)
- TUV Certificate (RT-50)
- EMC Certificate (RT-50)
Images are for illustration only; actual product may vary.
