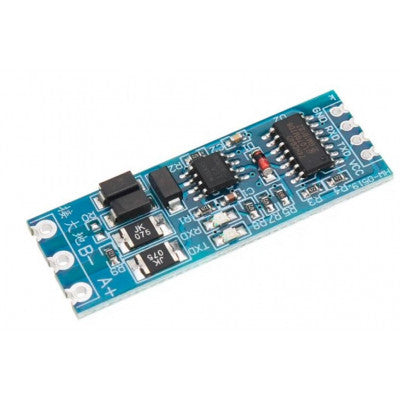

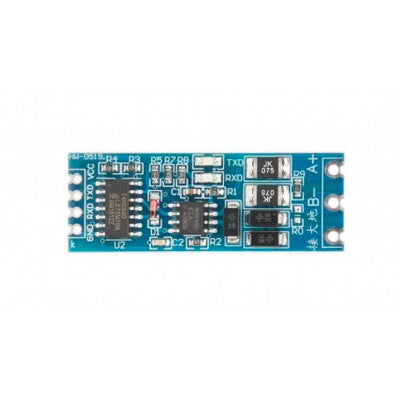

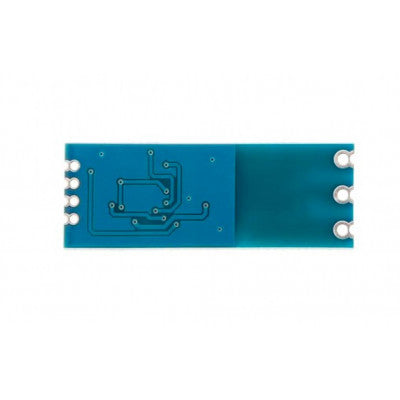

RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module
Reliable RS485 to TTL converter supporting long-range bus communication
- Chip: MAX485
- Power Supply: 3.3V and 5V
- Supports: TTL Levels
- Nodes: Up to 128 on RS485 bus
- Bus Length: Up to 800 meters
- PCB Thickness: 0.8 mm
Top Features:
- Long-distance signal transmission
- 120 ohm termination resistors
- Supports multi-machine communication
- Hot-swappable with no dead signal
The RS485 to TTL Converter Module is based on the MAX485 chip, known for its reliability in RS485 bus applications. It supports both 3.3V and 5V power supplies and TTL levels, making it versatile for various setups. With the ability to connect and identify up to 128 nodes on the RS485 bus, this module is suitable for extensive network configurations.
Featuring a long bus length support of up to 800 meters, this module ensures reliable communication over extended distances. The PCB thickness of 0.8 mm allows for easy integration into existing PCBs or devices. Additionally, the module includes indicators for receive and transmit signals, enhancing monitoring capabilities.
Designed for robust performance, the module offers anti-jamming and anti-interference effects, making it suitable for industrial and harsh environments. It is compatible with both 3.3V and 5.0V power supplies and signals, providing flexibility in usage.
The module's standard 2.54 pitch design enables easy secondary development, while the inclusion of termination resistors and support for multi-machine communication further enhances its functionality. With hot-swappable capability and a large copper area to prevent interference, this module ensures reliable and stable operation.
Whether you are working in industrial fields or harsh environments, the RS485 to TTL Converter Module offers a reliable solution for your communication needs. With signal indicator lights for RXD and TXD, monitoring the send and receive status is convenient.
Note: This module is compatible with both 3.3V and 5.0V power supplies and ensures perfect compatibility with RS485 signals, featuring automatic flow control. It does not require "Receiving-launch" control, simplifying its use in serial port operations.
Package Includes:
- 1 x RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module
Images are for illustration only; actual product may vary.
